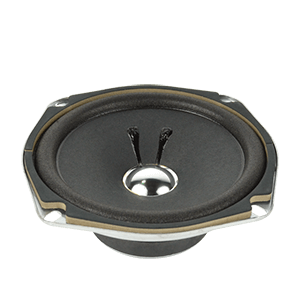

GF1302 Speakers by Same Sky
134 mm, Square Frame, 15.0 W, 8 Ohm, Ferrite Magnet, Paper Cone, Speaker
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
Specifications
| Resonance Freq. (Hz) | 95 |
|---|---|
| Impedance (Ohms) | 8 |
| Max Input (W) | 25 |
| Nominal Input (W) | 15 |
| Height (mm) | 49 |
| S.P. Level (dB) | 1, 0.5, 94 |
| Dimensions LxWxH (in) | 5.28, 5.28, 1.93 |
| Dimensions LxWxH (mm) | 134, 134, 49 |
| Mounting Style | Solder Eyelet(s) |
| Cone Type | Paper |
| Magnet Type | Ferrite |
| Frame Shape | Square |
| Length (mm) | 134 |
| Width (mm) | 134 |
| Enclosed | No |
GF1302 speakers by CUI Inc
134 mm, Square Frame, 15.0 W, 8 Ohm, Ferrite Magnet, Paper Cone
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Cone Type | Paper |
|---|---|
| Dimensions LxWxH (in) | 5.28 x 5.28 x 1.93 |
| Dimensions LxWxH (mm) | 134 x 134 x 49 |
| Frame Shape | Square |
| Height (mm) | 49 |
| Impedance (Ohms) | 8 |
| Length (mm) | 134 |
| Magnet Type | Ferrite |
| Max Input (W) | 25 |
| Mounting Style | Solder Eyelet(s) |
| Nominal Input (W) | 15 |
| Resonance Freq. (Hz) | 95 |
| S.P. Level (dB) | 94 (1 W / 0.5 m) |
| Width (mm) | 134 |
GF1302 Testers, Detectors & Calibration by General Tools & Instruments
Tester Type:Network Cable Tester
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Resistance | - |
|---|---|
| External Height | - |
| External Width | - |
| External Depth | - |
| Product Range | - |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a GF1302?
Additional datasheets, footprints and schematics for GF1302 are listed on our Part Details page. You can also find images and similar parts to GF1302 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for GF1302 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view GF1302 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does GF1302 fall under?
The GF1302 is listed under Audio > Speakers > Standard (41 mm~205 mm).
Can I view similar or alternative parts?
You can view similar parts to GF1302 when available in the Standard (41 mm~205 mm) range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the GF1302 you can contact the distributor directly for product support, shipping queries etc.
Is the GF1302 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Same Sky.
Which authorised distributors for GF1302 have stock available?
Authorised distributors including Newark Electronics have stock available or on a lead time for GF1302.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for GF1302 often in real-time on the comparison pages.
What if I can't find stock of GF1302?
You can fill out our help required form which you can use to request a quote for GF1302 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
