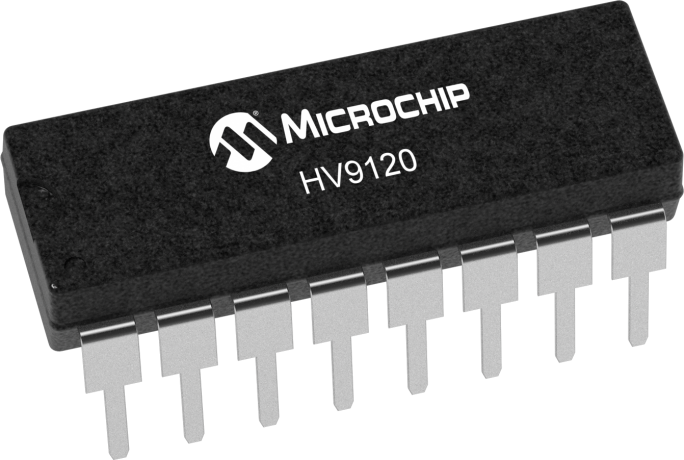

HV9120P-G Power Management ICs - PMIC by Microchip Technology
Switch Mode Controller, 450V, 2% Ref
| Status: | Active |
|---|---|
| Series: | HV9120 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$1.60
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$1.85
|
237,028
in stock
|
Buy Now |
|
RS
from US$2.10
|
1,564
in stock
|
Buy Now |
|
Newark Electronics
from US$2.00
|
234
in stock
|
Buy Now |
|
element14
from US$2.84
|
234
in stock
|
Buy Now |
|
Farnell
from US$2.53
|
234
in stock
|
Buy Now |
|
TME
from US$2.75
|
35
in stock
|
Buy Now |
|
Avnet America
from US$1.88
|
21
in stock
|
Buy Now |
|
ECOM
from US$1.60
|
8
in stock
|
Buy Now |
|
EBV Elektronik
-
|
336
in stock
|
Buy Now |
|
Future Electronics
from US$1.95
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.25
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| 10 to 450V input voltage range |
| <1.3mA supply current |
| >1.0MHz clock |
| >20:1 dynamic range @ 500KHz |
| 49% Maximum duty cycle version |
| Low internal noise |
Specifications
| Vmin | 10 |
|---|---|
| Vmax | 450 |
| Feedback Accuracy max (%) | ±2 |
| Duty Cycle (%) | 49 |
| Switch | External |
| Package | SOIC-16, PDIP-16, PLCC-20 |
| Pins | Packaging | 16 | PDIP |
| Temp Range | -55C to +125C |
| Packing Media | Conductive Tube (24) |
Last 6 months Inventory & Pricing History
Resources
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 1.1127 |
| Shipping Weight (kg) | 1.88 |
| Lead Count | 16 |
| Package Type | PDIP |
| Package Width or Size | .300in |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| SWITCHMODE CONTROLLER, 450V, 2% REF | Microchip Technology |
| Microchip HV9120P-G PWM Controller | RS |
| Switchmode Controller, 450V, 2% Ref | Newark Electronics |
| IC: PMIC | TME |
| High-Voltage, Current-Mode PWM Controller, Vi=10/450V | ECOM |
| 16 PDIP .300IN TUBESWITCHMODE CONTROLLER 450V 2% REF | RS Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a HV9120P-G?
Additional datasheets, footprints and schematics for HV9120P-G are listed on our Part Details page. You can also find images and similar parts to HV9120P-G on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for HV9120P-G on our Product Comparison page. Access via the 'View Pricing & Stock' button to view HV9120P-G price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does HV9120P-G fall under?
The HV9120P-G is listed under Semiconductors - ICs > Power Management ICs - PMIC > PWM Controllers.
Can I view similar or alternative parts?
You can view similar parts to HV9120P-G when available in the PWM Controllers range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the HV9120P-G you can contact the distributor directly for product support, shipping queries etc.
Is the HV9120P-G RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Microchip Technology.
Which authorised distributors for HV9120P-G have stock available?
Authorised distributors including Microchip Technology, RS, Newark Electronics, element14 and Farnell have stock available or on a lead time for HV9120P-G.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for HV9120P-G often in real-time on the comparison pages.
What if I can't find stock of HV9120P-G?
You can fill out our help required form which you can use to request a quote for HV9120P-G from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
