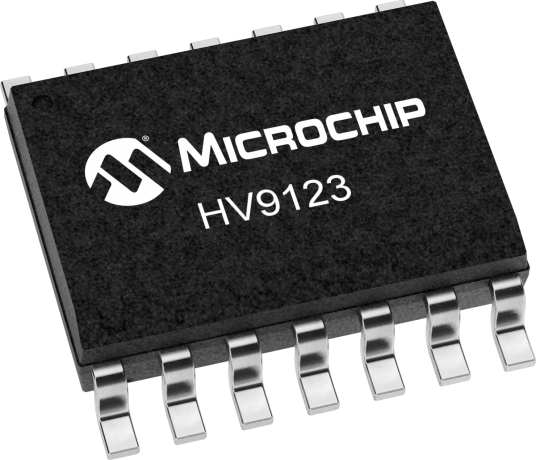

HV9123NG-G Power Management ICs - PMIC by Microchip Technology
Switch Mode Controller, 450V, 2% Ref
| Status: | Active |
|---|---|
| Series: | HV9123 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$2.28
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$2.28
|
1,350
in stock
|
Buy Now |
|
element14
from US$3.41
|
456
in stock
|
Buy Now |
|
Farnell
from US$2.99
|
456
in stock
|
Buy Now |
|
Future Electronics
from US$2.39
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.54
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
|
ECOM
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| 10 to 450V input voltage range |
| <1.3mA supply current |
| >1.0MHz clock |
| >20:1 dynamic range @ 500kHz |
| 99% Maximum duty cycle version |
| Low internal noise |
Specifications
| Vmin | 10 |
|---|---|
| Vmax | 450 |
| Feedback Accuracy max (%) | ±2 |
| Duty Cycle (%) | 99 |
| Switch | External |
| Package | SOIC-16, PDIP-16, PLCC-20 |
| Pins | Packaging | 14 | SOIC |
| Temp Range | -55C to +125C |
| Packing Media | Conductive Tube (45) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| HV9120/HV9123 Datasheet - High-Voltage, Current-Mode, PWM Controller |
| HV9123 Datasheet - High-Voltage Current-Mode PWM Controller |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.1278 |
| Shipping Weight (kg) | 0.311111 |
| Lead Count | 14 |
| Package Type | SOIC |
| Package Width or Size | .150In(3.90mm) |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| SWITCHMODE CONTROLLER, 450V, 2% REF | Microchip Technology |
| PWM controller, D=99%, Vin=10/450V, 3MHz, -55+125°C | ECOM |
