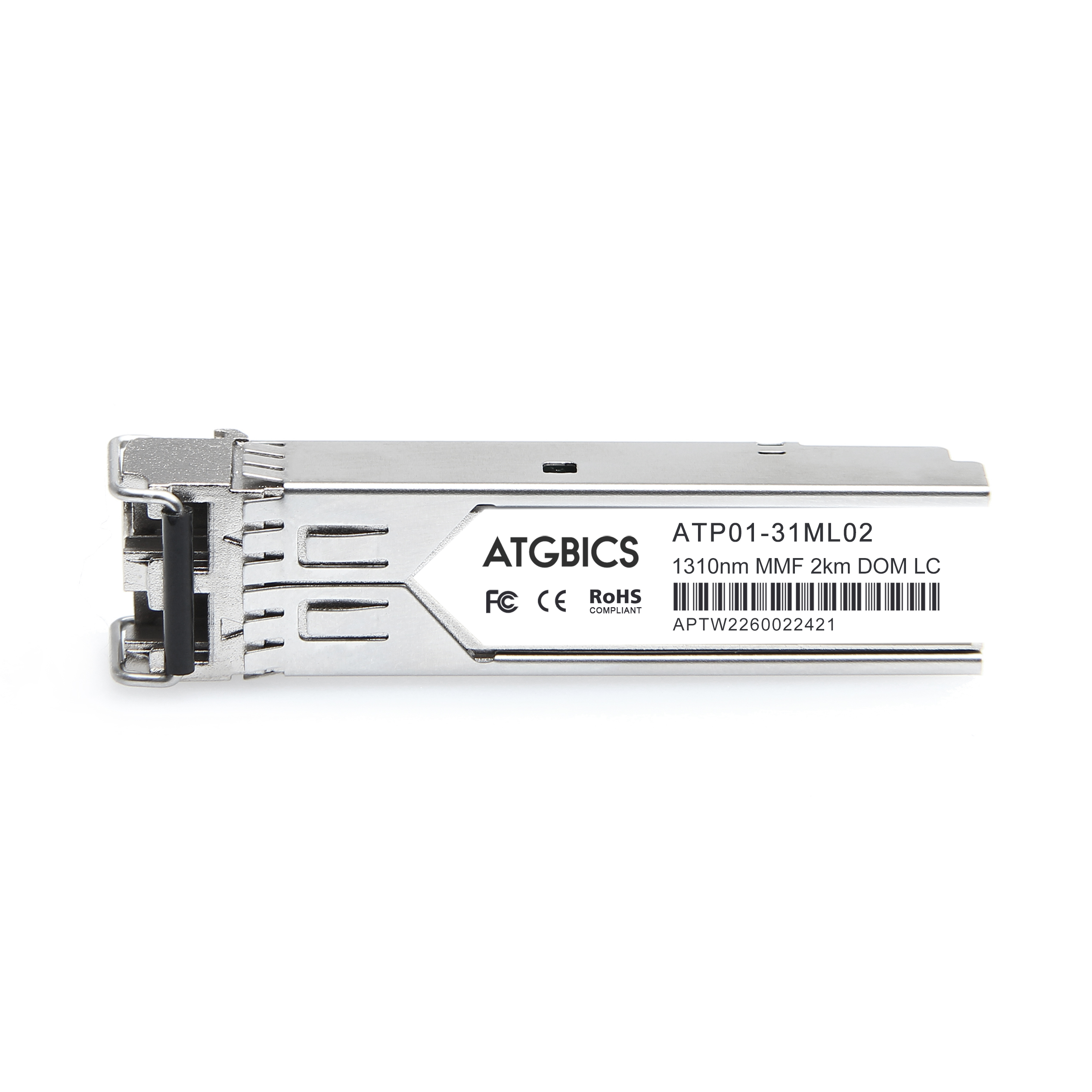

J9054C-C Network Transceiver Modules by ATGBICS
J9054C HPE Compatible Transceiver SFP, 100Base-FX (1310nm, MMF, 2km, DOM)
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Compliant |
No distributors results available
Features
| Single-mode fiber (SMF) supported |
| Multi-mode fiber (MMF) supported |
| Ethernet LAN |
| Digital Diagnostics Monitoring (DDM) |
| Wavelength-division multiplexing (WDM) |
| Plug and Play |
| Hot-Plug support |
| Hot-swap |
| Easy to install |
| Sustainability compliance |
Specifications
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate (megabit per second) | 100 |
| Interface type | SFP |
| Fiber optic connector | LC |
| SFP transceiver standard | FX |
| Maximum transfer distance (meter) | 2000 |
| Wavelength (nanometers) | 1310 |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3,IEEE 802.3ah |
| Copper ethernet cabling technology | 100BASE-FX |
| Product colour | Silver |
| Housing material | Metal |
| Country of origin | China |
| Brand compatibility | HP |
| Certification | CE, FCC, RoHS |
| Input voltage (Volt) | 3.3 |
| Maximum voltage (Volt) | 3.5 |
| Power consumption (typical) (Watt) | 1 |
| Maximum operating temperature (degrees Celcius) | 70 |
| Operating temperature (T-T) (degrees Celcius) | 0 - 70 |
| Storage temperature (T-T) (degrees Celcius) | -40 - 85 |
| Operating relative humidity (H-H) (percent) | 0 - 95 |
| Storage relative humidity (H-H) (percent) | 0 - 95 |
| Width (millimeter) | 13.4 |
| Depth (millimeter) | 56.5 |
| Height (millimeter) | 8.5 |
| Weight (gram) | 19 |
| Number of products included (piece(s)) | 1 |
| Package type | Box |
| Sustainability certificates | RoHS |
| Doesn't contain | Lead |
