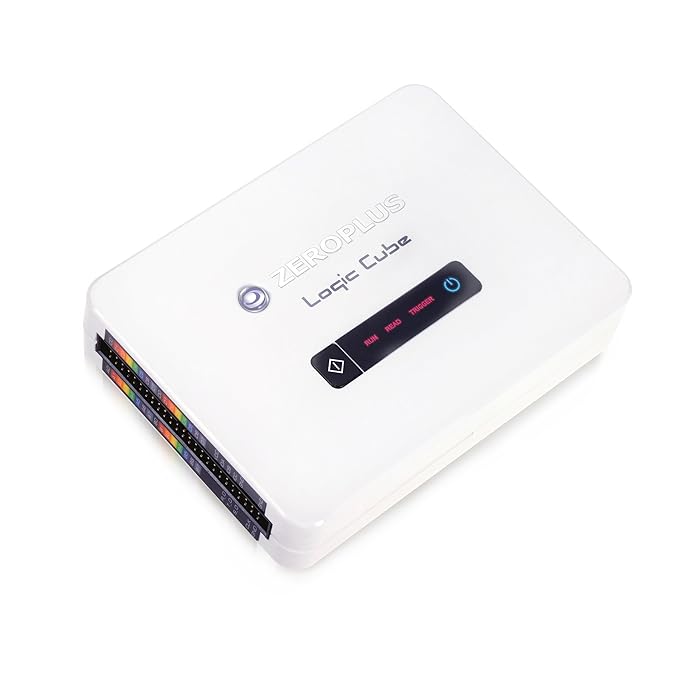

LAP-C(16128) by Zeroplus Technology
LAP-C 16128, PC USB 2.0 Logic Analyzer, 16CH, Sampling Rate 200 MHz, Total Memory Depth 2 Mbit
| Status: | Active |
|---|---|
| Series: | Zeroplus LAP-C Pro Logic Analyzer |
| RoHS: | Compliant |
No distributors results available
Features
| Live USB Data Transfer |
| Large Internal Storage |
| Broad Range of Input Voltages |
| Ready to Use Package |
| Accessories |
|---|
| USB Cable |
| Measurement Cables |
| Probe Clips |
| Latest Product Software |
| Travel Bag |
Specifications
| Manufacturer Part Number | FM00000166 |
|---|---|
| Logic Analyzer Channels | 16 Channels |
| Memory Depth per Channel | 16 Ch / 128 Kbit (LAP-C 16128) |
| Types of BUS / Protocols Decoder | 128 Types with new BUS / Protocols adding for free |
| Bandwidth | 100 MHz |
| Sampling Rate | 200 MHz |
| Total Memory Depth | 2 Mbit |
| Digital Pattern Generator | Available for "Zeroplus LAP-C Pro Logic Analyzer" Series I2C, SPI, UART (RS-232C/422/485), CAN |
| OS Support | Windows (10 / 8 / 7), Windows 11 (x86-64 processor only) |
| Input Range | -6 V ~ +6 V |
| Input Impedance | 500KΩ / 10pF |
| Interface | USB 2.0 |
| Power Supply | DC5V (Max. 3W) |
| Dimensions (Main Unit) | 126 x 95 x 25 mm |
| Gross Weight | 830 g |
| Manufacturer Warranty | 2 Years |
| Certifications | CE / FCC / WEEE / RoHS / REACH |
| Phase error | Less than 5 ns |
