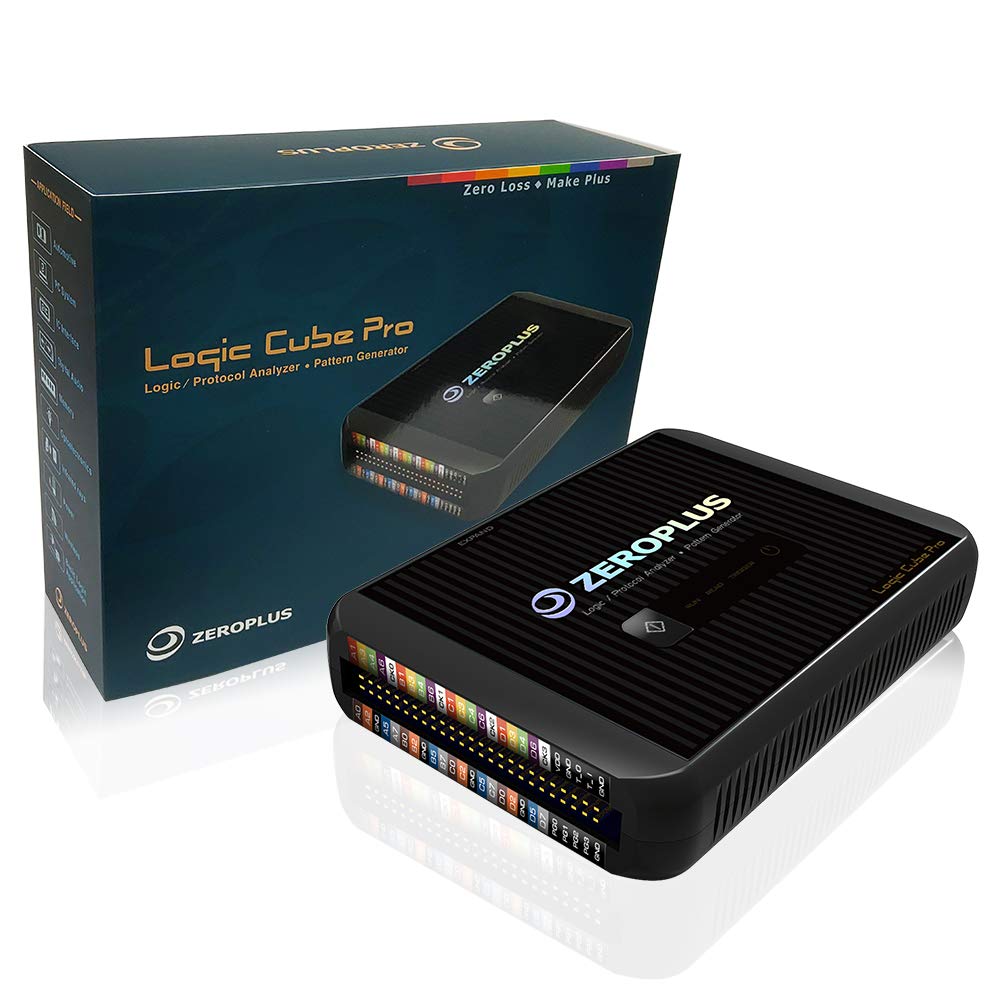

LAP-C Pro(32064M) by Zeroplus Technology
LAP-C Pro 32064M, PC USB 3.0 Logic Analyzer, 32CH, Sampling Rate 2 GHz, Total Memory Depth 2 Gbit
| Status: | Active |
|---|---|
| Series: | Zeroplus LAP-C Pro Logic Analyzer |
| RoHS: | Compliant |
Features
| Live USB Data Transfer |
| Large Internal Storage |
| Broad Range of Input Voltages |
| Ready to Use Package |
| Accessories |
|---|
| USB Cable |
| Measurement Cables |
| Probe Clips |
| USB Flash Drive |
| Latest Product Software |
| Travel Bag |
Specifications
| Manufacturer Part Number | FM00007893 |
|---|---|
| Logic Analyzer Channels | 32 Channels |
| Memory Depth per Channel | 32 Ch / 64 Mb (LAP-C Pro 32064M) |
| Types of BUS / Protocols Decoder | 132 Types with new BUS / Protocols adding for free |
| Bandwidth | 250 MHz |
| Sampling Rate | 2 GHz |
| Total Memory Depth | 2 Gbit |
| Digital Pattern Generator | I2C, SPI, UART (RS-232C/422/485), CAN |
| OS Support | Windows (10 / 8 / 7), Windows 11 (x86-64 processor only) |
| Input Range | -6 V ~ +6 V |
| Input Impedance | 200 kΩ / 7 pF |
| Interface | USB 3.0 |
| Dimensions (Main Unit) | 126 x 95 x 25 mm |
| Gross Weight | 720 g |
| Manufacturer Warranty | 2 Years |
| Certifications | CE / FCC / WEEE / RoHS / REACH |
| Phase error | Less than 500 ps |
