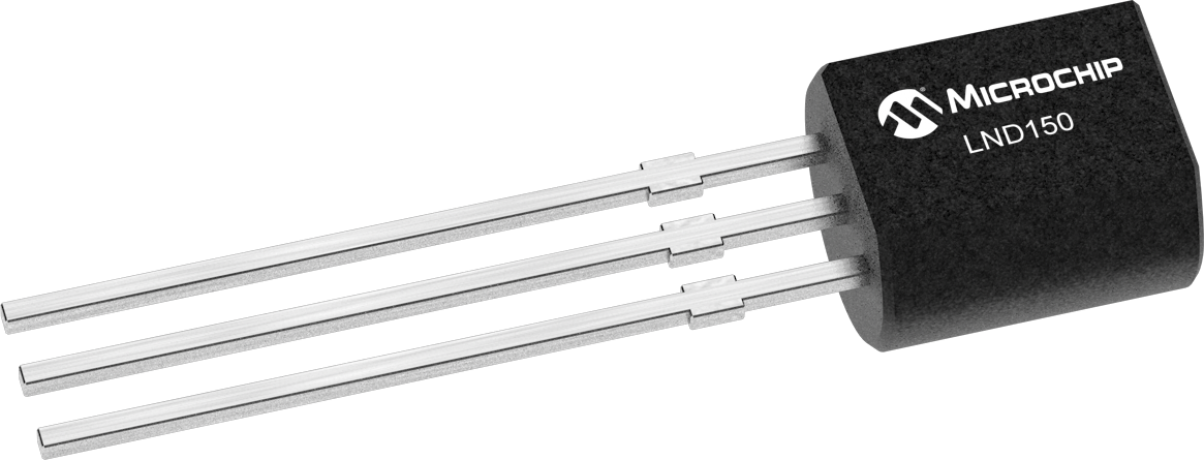

LND150N3-G-P014 More Semiconductors - Discretes by Microchip Technology
N-Channel Depletion-Mode DMOS FET
| Status: | Active |
|---|---|
| Series: | LND150 |
| RoHS: | Compliant |
Features
| Free from secondary breakdown |
| Low power drive requirement |
| Ease of paralleling |
| Excellent thermal stability |
| Integral source-drain diode |
| High input impedance and low CISS |
| ESD gate protection |
Specifications
| BVdsx min (V) | 500 |
|---|---|
| RDS (Ohms) | 1000 |
| Vgs(off) min (V) | -1.0 |
| Vgs(off) max (V) | -3.0 |
| Package | SOT-23, TO-92, SOT-89 |
| Pins | Packaging | 3 | TO-92 |
| Temp Range | -55C to +150C |
| Packing Media | Ammo Pack (2000) |
Last 6 months Inventory & Pricing History
Resources
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.2034 |
| Shipping Weight (kg) | 0.35 |
| Lead Count | 3 |
| Package Type | TO-92 |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| MOSFET, DEPLETION-MODE, 500V, 1K Ohm | Microchip Technology |
| Mosfet, Depletion-Mode, 500V, 1K Ohm 3 To-92 Ammo |Microchip Technology LND150N3-G-P014 | Newark Electronics |
| Transistor: N-MOSFET | TME |
