MAX3795ETG+ Obsolete by Analog Devices

Obsolete
Status: Production
Series: MAX3795
RoHS: Compliant
Download Datasheet Visit Manufacturer Site View Pricing & Stock

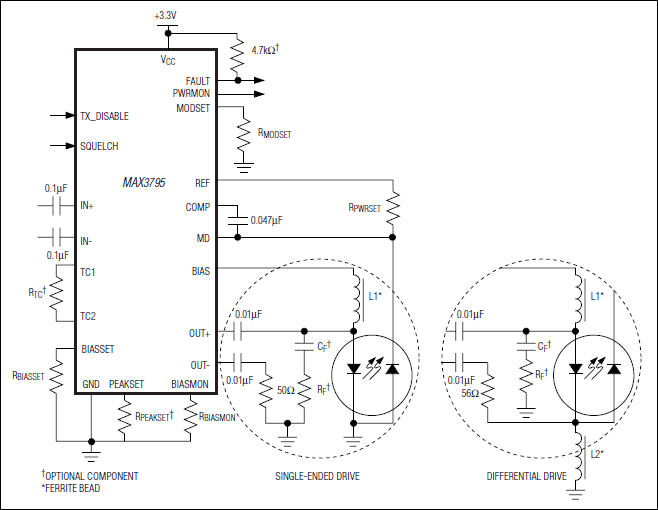

The MAX3795 is a high-speed VCSEL driver for small-form-factor (SFF) and small-form-factor pluggable (SFP) fiber optic transmitters. It contains a bias generator, a laser modulator, and comprehensive safety features. The automatic power control (APC) adjusts the laser bias current to maintain average optical power over changes in temperature and laser properties. The driver accommodates common-cathode and differential configurations.The MAX3795 operates up to 4.25Gbps. It can switch up to 15mA of laser modulation current and source up to 15mA of bias current. Adjustable temperature compensation is provided to keep the optical extinction ratio within specifications over the operating temperature range. The MAX3795 interfaces with the Dallas DS1856/DS1859 to meet SFF-8472 timing and diagnostic requirements. The MAX3795 accommodates various VCSEL packages, including low-cost TO-46 headers.The MAX3795 safety circuit detects faults that could cause hazardous light levels and disables the VCSEL output. The safety circuits are compliant with SFF and SFP multisource agreements (MSAs).The MAX3795 is available in a compact 4mm x 4mm, 24-pin thin QFN package and operates over the -40°C to +85°C temperature range. The MAX3795 is pin-for-pin compatible with the MAX3740A and is available in lead-free packages.

Where to Buy

Prices starting from US$12.26

Distributor Stock
Logo for Farnell UK
Farnell
from US$12.26
0
in stock
 Buy Now
Logo for Newark
Newark Electronics
-
0
in stock
 Buy Now
Buy Now

Last 6 months Inventory & Pricing History

MAX3795ETG+ Semiconductors - ICs by Analog Devices

LASER DRIVER 4.25GBPS TQFN-24

Semiconductors - ICs
> Drivers & Interfaces
> Laser Diode Drivers
Status: Unknown
Series: -
RoHS: Unknown
Download Datasheet Visit Manufacturer Site View Pricing & Stock

Specifications

Laser Driver Type SFP VCSEL
Driver Case Style TQFN
No. of Pins 24Pins
Supply Voltage Min 2.97V
Supply Voltage Max 3.63V
Product Range -
MSL MSL 1 - Unlimited
SVHC No SVHC (15-Jan-2018)

Last 6 months Inventory & Pricing History

Alternative Descriptions

LASER DRIVER, 4.25GBPS, TQFN-24 | Farnell
Laser Driver, 4.25Gbps, Tqfn-24 | Newark Electronics

Frequently Asked Questions

Where can I find additional details, specifications and documents for a MAX3795ETG+?

Additional datasheets, footprints and schematics for MAX3795ETG+ are listed on our Part Details page. You can also find images and similar parts to MAX3795ETG+ on this page.

What pricing and inventory information can I view?

Distributor pricing and stock information is available for MAX3795ETG+ on our Product Comparison page. Access via the 'View Pricing & Stock' button to view MAX3795ETG+ price breaks, MOQs, lead times, inventory and SKUs from distributors.

What category does MAX3795ETG+ fall under?

The MAX3795ETG+ is listed under Obsolete.

Can I view similar or alternative parts?

You can view similar parts to MAX3795ETG+ when available in the Obsolete range under the specifications section at the bottom of the details page.

Who can I contact for technical support of the product?

Submit any questions directly to the customer support team of the distributor listing the product. For the MAX3795ETG+ you can contact the distributor directly for product support, shipping queries etc.

Is the MAX3795ETG+ RoHS compliant?

Yes. This part has been flagged as RoHS Compliant by Analog Devices.

Which authorised distributors for MAX3795ETG+ have stock available?

Authorised distributors including Farnell and Newark Electronics have stock available or on a lead time for MAX3795ETG+.

How do I check stock and lead times for all distributors?

Stock availability and lead times will be displayed for MAX3795ETG+ often in real-time on the comparison pages.

What if I can't find stock of MAX3795ETG+?

You can fill out our help required form which you can use to request a quote for MAX3795ETG+ from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
