MAX3942ETG+ Obsolete by Analog Devices

Obsolete
Status: Production
Series: MAX3942
RoHS: Compliant
Download Datasheet Visit Manufacturer Site View Pricing & Stock

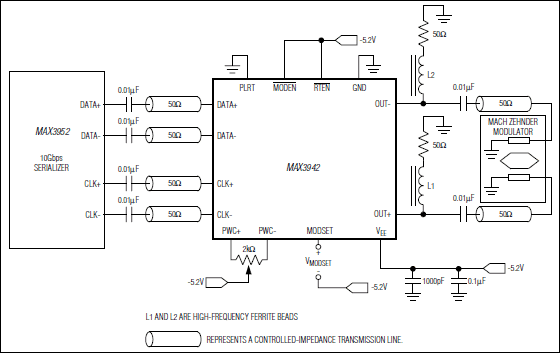

The MAX3942 is designed to drive high-speed opticalmodulators at data rates up to 10.7Gbps. It functions asa modulation circuit, with an integrated control op ampexternally programmed by a DC voltage.A high-bandwidth, fully differential signal path is internallyimplemented to minimize jitter accumulation. Whena clock signal is available, the integrated data-retimingfunction can be selected to reject input-signal jitter.The MAX3942 receives differential CML signals (groundreferenced)with on-chip line terminations of 50Ω. Eachof the differential outputs has an on-chip 50Ω resistor forback termination. The driver is able to deliver a modulationcurrent of 40mAP-P to 120mAP-P, with an edgespeed of 23ps (typical 20% to 80%). This modulationcurrent reflects a modulation voltage of 1.0VP-P to 3.0VP-P single ended or 2.0VP-P to 6.0VP-P differential.The MAX3942 also includes an adjustable pulse-widthcontrol circuit to precompensate for asymmetrical modulatorcharacteristics. It is available in a compact 4mm x 4mm, 24-pin thin QFN package and operates over the -40°C to +85°C temperature range.

Where to Buy

Prices starting from US$125.62

Distributor Stock
Logo for element14 Singapore
element14
from US$130.85
0
in stock
 Buy Now
Logo for Farnell UK
Farnell
from US$125.62
0
in stock
 Buy Now
Logo for Newark
Newark Electronics
-
0
in stock
 Buy Now
Buy Now

Last 6 months Inventory & Pricing History

MAX3942ETG+ - Integrated Circuits by Analog Devices

MODULATOR DRIVER 10GBPS TQFN-24

Semiconductors - ICs
> Special Function
Status: Unknown
Series: -
RoHS: Unknown
Download Datasheet Visit Manufacturer Site View Pricing & Stock

Specifications

IC Function Modulator Driver
Supply Voltage Min -5.5V
Supply Voltage Max -4.9V
IC Package Type TQFN
No. of Pins 24Pins
Operating Temperature Min -40°C
Operating Temperature Max 85°C
Product Range -
Automotive Qualification Standard -
MSL MSL 1 - Unlimited
SVHC No SVHC (15-Jan-2018)

Last 6 months Inventory & Pricing History

Alternative Descriptions

MODULATOR DRIVER, 10GBPS, TQFN-24 | element14
Modulator Driver, 10Gbps, -4.9V, Tqfn-24 | Newark Electronics

Frequently Asked Questions

Where can I find additional details, specifications and documents for a MAX3942ETG+?

Additional datasheets, footprints and schematics for MAX3942ETG+ are listed on our Part Details page. You can also find images and similar parts to MAX3942ETG+ on this page.

What pricing and inventory information can I view?

Distributor pricing and stock information is available for MAX3942ETG+ on our Product Comparison page. Access via the 'View Pricing & Stock' button to view MAX3942ETG+ price breaks, MOQs, lead times, inventory and SKUs from distributors.

What category does MAX3942ETG+ fall under?

The MAX3942ETG+ is listed under Obsolete.

Can I view similar or alternative parts?

You can view similar parts to MAX3942ETG+ when available in the Obsolete range under the specifications section at the bottom of the details page.

Who can I contact for technical support of the product?

Submit any questions directly to the customer support team of the distributor listing the product. For the MAX3942ETG+ you can contact the distributor directly for product support, shipping queries etc.

Is the MAX3942ETG+ RoHS compliant?

Yes. This part has been flagged as RoHS Compliant by Analog Devices.

Which authorised distributors for MAX3942ETG+ have stock available?

Authorised distributors including element14, Farnell and Newark Electronics have stock available or on a lead time for MAX3942ETG+.

How do I check stock and lead times for all distributors?

Stock availability and lead times will be displayed for MAX3942ETG+ often in real-time on the comparison pages.

What if I can't find stock of MAX3942ETG+?

You can fill out our help required form which you can use to request a quote for MAX3942ETG+ from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
