MAX3967AETG+ Obsolete by Analog Devices

Obsolete
Status: Production
Series: MAX3967A
RoHS: Compliant
Download Datasheet Visit Manufacturer Site View Pricing & Stock

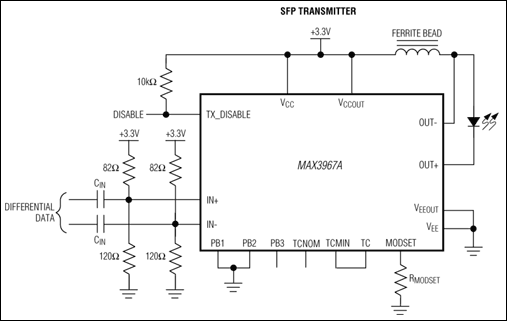

The MAX3967A is a programmable LED driver for fiberoptic transmitters operating at data rates up to270Mbps. The circuit contains a high-speed current driverwith programmable temperature coefficient (tempco),adjustments for LED prebias voltage, and a disablefeature. The circuit accepts PECL data inputs, andoperates from a single +2.97V to +5.5V power supply.The SFP LED driver can switch up to 100mA into typicalhigh-speed light-emitting diodes. As temperatureincreases, the device's modulation current increaseswith a tempco that is programmable from 2500ppm/°Cto 12,000ppm/°C. The modulation current is programmedwith a single external resistor.The MAX3967A's LED prebias voltage is programmablefrom 400mV to 925mV. The prebias circuit producespeaking current, which improves the LED switchingspeed.Complementary current outputs help to maintain a constantsupply current, reducing EMI and supply noisegenerated by the transmitter module. The MAX3967A isavailable in die form, or in a 4mm x 4mm, 24-pin thinQFN package.

Where to Buy

Prices starting from US$5.81

Distributor Stock
Logo for element14 Singapore
element14
from US$6.16
13
in stock
 Buy Now
Logo for Newark
Newark Electronics
from US$5.81
0
in stock
 Buy Now
Logo for Farnell UK
Farnell
from US$5.86
0
in stock
 Buy Now
Buy Now

Last 6 months Inventory & Pricing History

MAX3967AETG+ Semiconductors - ICs by Analog Devices

LASER DRIVER 270MBPS TQFN-24

Semiconductors - ICs
> Drivers & Interfaces
> Laser Diode Drivers
Status: Unknown
Series: -
RoHS: Unknown
Download Datasheet Visit Manufacturer Site View Pricing & Stock

Specifications

Laser Driver Type SFP / SFF Optical Modules
Driver Case Style TQFN
No. of Pins 24Pins
Supply Voltage Min 2.97V
Supply Voltage Max 5.5V
Product Range -
RoHS Phthalates Compliant To Be Advised
MSL MSL 1 - Unlimited
SVHC No SVHC (15-Jan-2018)

Last 6 months Inventory & Pricing History

Alternative Descriptions

LASER DRIVER, 270MBPS, TQFN-24 | element14
Laser Driver, 270Mbps, Tqfn-24 | Newark Electronics

Frequently Asked Questions

Where can I find additional details, specifications and documents for a MAX3967AETG+?

Additional datasheets, footprints and schematics for MAX3967AETG+ are listed on our Part Details page. You can also find images and similar parts to MAX3967AETG+ on this page.

What pricing and inventory information can I view?

Distributor pricing and stock information is available for MAX3967AETG+ on our Product Comparison page. Access via the 'View Pricing & Stock' button to view MAX3967AETG+ price breaks, MOQs, lead times, inventory and SKUs from distributors.

What category does MAX3967AETG+ fall under?

The MAX3967AETG+ is listed under Obsolete.

Can I view similar or alternative parts?

You can view similar parts to MAX3967AETG+ when available in the Obsolete range under the specifications section at the bottom of the details page.

Who can I contact for technical support of the product?

Submit any questions directly to the customer support team of the distributor listing the product. For the MAX3967AETG+ you can contact the distributor directly for product support, shipping queries etc.

Is the MAX3967AETG+ RoHS compliant?

Yes. This part has been flagged as RoHS Compliant by Analog Devices.

Which authorised distributors for MAX3967AETG+ have stock available?

Authorised distributors including element14, Newark Electronics and Farnell have stock available or on a lead time for MAX3967AETG+.

How do I check stock and lead times for all distributors?

Stock availability and lead times will be displayed for MAX3967AETG+ often in real-time on the comparison pages.

What if I can't find stock of MAX3967AETG+?

You can fill out our help required form which you can use to request a quote for MAX3967AETG+ from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
