MAX9722AEUE+ Obsolete by Analog Devices

Obsolete
Status: Production
Series: MAX9722A
RoHS: Compliant
Download Datasheet Visit Manufacturer Site View Pricing & Stock

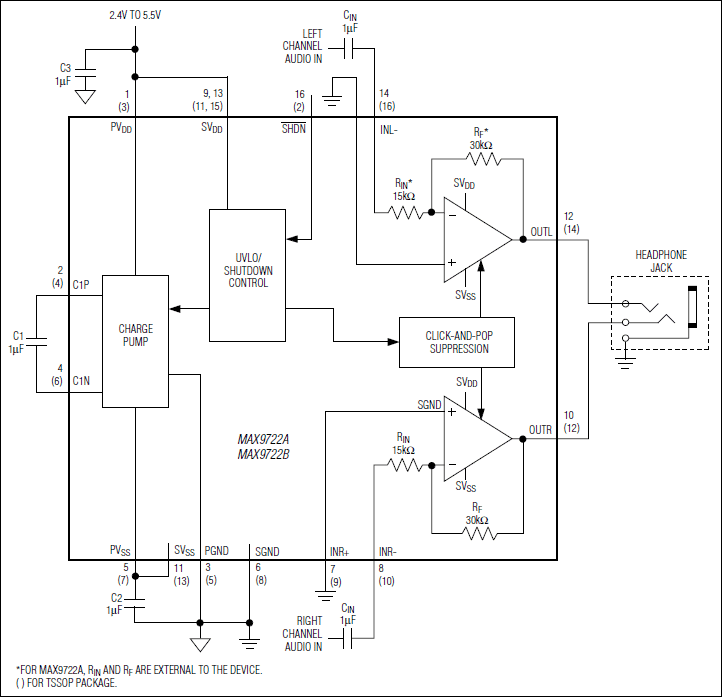

The MAX9722A/MAX9722B stereo headphone amplifiers are designed for portable equipment where board space is at a premium. The MAX9722A/MAX9722B use aunique DirectDrive® architecture to produce a ground-referenced output from a single supply, eliminating the need for large DC-blocking capacitors, which saves cost, board space, and component height. Additionally, the gain of the amplifier is set internally (-2V/V, MAX9722B) or adjusted externally (MAX9722A). The MAX9722A/MAX9722B deliver up to 70mW per channel into a 16Ω load or 130mW into a 32Ω load and have low 0.009% THD+N. An 80dB at 217Hz power-supply rejection ratio (PSRR) allows these devices to operate from noisy digital supplies without an additional linear regulator. The MAX9722A/MAX9722B include ±8kV ESD protection on the headphone outputs. Comprehensive anticlick-and-pop circuitry suppresses audible clicks and pops on startup and shutdown. A low-power shutdown mode reduces the supply current to 0.1µA.The MAX9722A/MAX9722B operate from a single 2.4V to 5.5V supply, consume only 5.5mA of supply current, feature short-circuit and thermal-overload protection,and are specified over the extended -40°C to +85°C temperature range. The devices are available in tiny 16-pin thin QFN (3mm x 3mm x 0.8mm) and 16-pinTSSOP packages.

Where to Buy

Prices starting from US$0.59

Distributor Stock
Logo for Newark
Newark Electronics
from US$1.10
7,686
in stock
 Buy Now
Logo for element14 Singapore
element14
from US$1.18
7,686
in stock
 Buy Now
Logo for Farnell UK
Farnell
from US$1.22
7,686
in stock
 Buy Now
Logo for CoreStaff
CoreStaff
from US$0.59
446
in stock
 Buy Now
Buy Now

Last 6 months Inventory & Pricing History

MAX9722AEUE+ Amplifiers & Comparators by Analog Devices

AUDIO AMP CLASS AB 130MW TSSOP-16

Semiconductors - ICs
> Amplifiers & Comparators
> Audio Amplifiers
Status: Unknown
Series: -
RoHS: Unknown
Download Datasheet Visit Manufacturer Site View Pricing & Stock

Specifications

Amplifier Class AB
No. of Channels 1 Channel, 1Channels
Output Power 130mW
Supply Voltage Range 2.4V to 5.5V
Amplifier Case Style TSSOP
No. of Pins 16Pins
Load Impedance 32ohm
Operating Temperature Min -40°C
Operating Temperature Max 85°C
Product Range -
Automotive Qualification Standard -
RoHS Phthalates Compliant To Be Advised
MSL MSL 1 - Unlimited
SVHC No SVHC (15-Jan-2018)

Last 6 months Inventory & Pricing History

Alternative Descriptions

Audio Amp, Class Ab, 130Mw, Tssop-16 | Newark Electronics
AUDIO AMP, CLASS AB, 130MW, TSSOP-16 | element14

Frequently Asked Questions

Where can I find additional details, specifications and documents for a MAX9722AEUE+?

Additional datasheets, footprints and schematics for MAX9722AEUE+ are listed on our Part Details page. You can also find images and similar parts to MAX9722AEUE+ on this page.

What pricing and inventory information can I view?

Distributor pricing and stock information is available for MAX9722AEUE+ on our Product Comparison page. Access via the 'View Pricing & Stock' button to view MAX9722AEUE+ price breaks, MOQs, lead times, inventory and SKUs from distributors.

What category does MAX9722AEUE+ fall under?

The MAX9722AEUE+ is listed under Obsolete.

Can I view similar or alternative parts?

You can view similar parts to MAX9722AEUE+ when available in the Obsolete range under the specifications section at the bottom of the details page.

Who can I contact for technical support of the product?

Submit any questions directly to the customer support team of the distributor listing the product. For the MAX9722AEUE+ you can contact the distributor directly for product support, shipping queries etc.

Is the MAX9722AEUE+ RoHS compliant?

Yes. This part has been flagged as RoHS Compliant by Analog Devices.

Which authorised distributors for MAX9722AEUE+ have stock available?

Authorised distributors including Newark Electronics, element14, Farnell and CoreStaff have stock available or on a lead time for MAX9722AEUE+.

How do I check stock and lead times for all distributors?

Stock availability and lead times will be displayed for MAX9722AEUE+ often in real-time on the comparison pages.

What if I can't find stock of MAX9722AEUE+?

You can fill out our help required form which you can use to request a quote for MAX9722AEUE+ from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
