MAX9972ACCS+D Pin Electronics (PE)/ Pin Drivers ATE by Analog Devices

Pin Electronics (PE)/ Pin Drivers ATE
Status: Production
Series: MAX9972
RoHS: Compliant
Download Datasheet Visit Manufacturer Site View Pricing & Stock

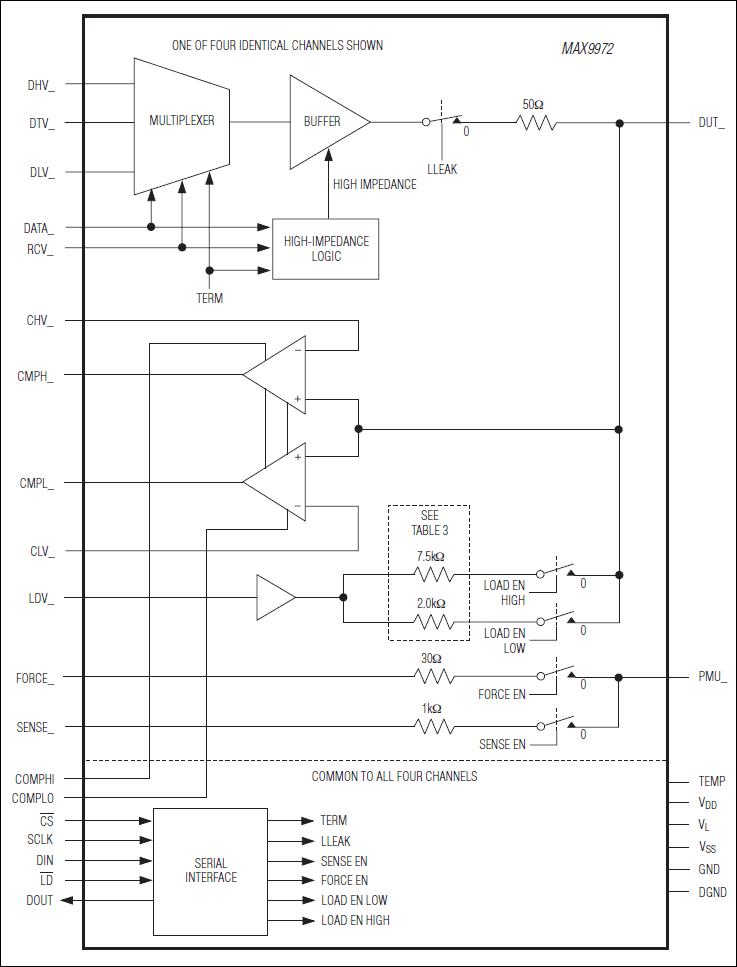

The MAX9972 four-channel, ultra-low-power, pin-electronics IC includes, for each channel, a three-level pin driver, a window comparator, a passive load, and force-and-sense Kelvin-switched parametric measurement unit (PMU) connections. The driver features a -2.2V to +5.2V voltage range, includes high-impedance and active-termination (3rd-level drive) modes, and is highly linear even at low voltage swings. The window comparator features 500MHz equivalent input bandwidth and programmable output voltage levels. The passive load provides pullup and pulldown voltages to the device-under-test (DUT).Low-leakage, high-impedance, and terminate controls are operational configurations that are programmed through a 3-wire, low-voltage, CMOS-compatible serial interface. High-speed PMU switching is realized through dedicated digital control inputs.This device is available in an 80-pin, 12mm x 12mm body, 0.50mm pitch TQFP with an exposed 6mm x 6mm die pad on the bottom of the package for efficient heat removal. The MAX9972 is specified to operate over the 0°C to +70°C commercial temperature range, and features a die temperature monitor output.

Where to Buy

Prices starting from US$75.59

Distributor Stock
Logo for Newark
Newark Electronics
from US$76.34
0
in stock
 Buy Now
Logo for element14 Singapore
element14
from US$83.90
0
in stock
 Buy Now
Logo for Farnell UK
Farnell
from US$75.59
0
in stock
 Buy Now
Buy Now

Last 6 months Inventory & Pricing History

MAX9972ACCS+D Amplifiers & Comparators by Analog Devices

ATE DRIVER/COMPARATOR, 0 TO 70DEG C

Semiconductors - ICs
> Amplifiers & Comparators
> Comparators
Status: Unknown
Series: -
RoHS: Compliant
Download Datasheet Visit Manufacturer Site View Pricing & Stock

Specifications

RoHS Compliant YES

Last 6 months Inventory & Pricing History

Alternative Descriptions

Ate Driver/Comparator, 0 To 70Deg C Rohs Compliant: Yes |Maxim Integrated/analog Devices MAX9972ACCS+D | Newark Electronics

Frequently Asked Questions

Where can I find additional details, specifications and documents for a MAX9972ACCS+D?

Additional datasheets, footprints and schematics for MAX9972ACCS+D are listed on our Part Details page. You can also find images and similar parts to MAX9972ACCS+D on this page.

What pricing and inventory information can I view?

Distributor pricing and stock information is available for MAX9972ACCS+D on our Product Comparison page. Access via the 'View Pricing & Stock' button to view MAX9972ACCS+D price breaks, MOQs, lead times, inventory and SKUs from distributors.

What category does MAX9972ACCS+D fall under?

The MAX9972ACCS+D is listed under Pin Electronics (PE)/ Pin Drivers ATE.

Can I view similar or alternative parts?

You can view similar parts to MAX9972ACCS+D when available in the Pin Electronics (PE)/ Pin Drivers ATE range under the specifications section at the bottom of the details page.

Who can I contact for technical support of the product?

Submit any questions directly to the customer support team of the distributor listing the product. For the MAX9972ACCS+D you can contact the distributor directly for product support, shipping queries etc.

Is the MAX9972ACCS+D RoHS compliant?

Yes. This part has been flagged as RoHS Compliant by Analog Devices.

Which authorised distributors for MAX9972ACCS+D have stock available?

Authorised distributors including Newark Electronics, element14 and Farnell have stock available or on a lead time for MAX9972ACCS+D.

How do I check stock and lead times for all distributors?

Stock availability and lead times will be displayed for MAX9972ACCS+D often in real-time on the comparison pages.

What if I can't find stock of MAX9972ACCS+D?

You can fill out our help required form which you can use to request a quote for MAX9972ACCS+D from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
