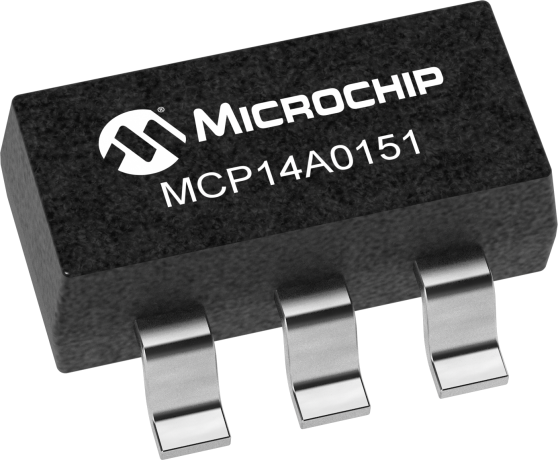

MCP14A0151T-E/CH Power Management ICs - PMIC by Microchip Technology
1.5 A MOSFET Gate Driver
| Status: | Active |
|---|---|
| Series: | MCP14A0151 |
| RoHS: | Compliant |
The MCP14A0151/2 devices are high-speed MOSFET gate drivers that are capable of providing up to 1.5 A of peak current while operating from a single 4.5 V to 18 V supply. The inverting (MCP14A0151) or non-inverting (MCP14A0152) single channel output is directly controlled from either TTL or CMOS (2 V to 18 V) logic. These devices also feature low shoot-through current, matched rise and fall times, and short propagation delays which make them ideal for high switching frequency applications. The MCP14A0151/2 family of devices offer enhanced control with Enable functionality. The active-high Enable pin can be driven low to drive the output of the MCP14A0151/2 low, regardless of the status of the Input pin. An integrated pull-up resistor allows the user to leave the Enable pin floating for standard operation. Additionally, the MCP14A0151/2 devices feature separate ground pins (AGND and GND), allowing greater noise isolation between the level-sensitive Input/Enable pins and the fast, high-current transitions of the push-pull output stage. These devices are highly latch-up resistant under any condition within their power and voltage ratings. They can accept up to 500 mA of reverse current being forced back into their outputs without damage or logic upset. All terminals are fully protected against electrostatic discharge (ESD) up to 1.75 kV (HBM) and 200 V (MM).
Where to Buy
Prices starting from US$0.65
Features
| High Peak output Current: 1.5 A (Typical) |
| Wide Input Supply Voltage Operating Range: 4.5 V to 18 V |
| Low Shoot-Through/Cross-Conduction Current in Output Stage |
| High Capacitive Load Drive Capability: 1000 pF in 11.5 ns (typical) |
| Short Delay Times: 33 ns (tD1), 24 ns (tD2) (Typical) |
| Low Supply Current: 375 µA (Typical) |
| Low-Voltage Threshold Input and Enable with Hysteresis |
| Latch-Up Protected: Withstands 500 mA Reverse Curret |
| 6-Lead SOT-23 |
| 6-Lead 2x2 TDFN |
Specifications
| MOSFET Driver Type | Low Side |
|---|---|
| Driver Type | Single |
| Configuration | Inverting |
| Peak Output Current (source, A) | 1.5 |
| Peak Output Current (sink, A) | 1.5 |
| Output Resistance (source, Ω) | 4.5 |
| Output Resistance (sink, Ω) | 3 |
| Propagation Delay tD1 (ns) | 32 |
| Propagation Delay tD2 (ns) | 24 |
| Maximum Supply Voltage (V) | 18 |
| Rise/Fall Time (tR/tF, ns) | 11 / 10 |
| Capacitive Load Drive | 1000 pF in 11.5 ns |
| Features | Low Input Threshold and Enable Pin |
| Pins | Packaging | 6 | SOT-23 |
| Temp Range | -40C to +125C |
| Packing Media | Tape and reel (3000) |
Last 6 months Inventory & Pricing History
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.017 |
| Shipping Weight (kg) | 0.046667 |
| Lead Count | 6 |
| Package Type | SOT-23 |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| 1.5A Inverting MOSFET Driver w/ Low Threshold Input & Enable | Microchip Technology |
| 1.5A Inv. L Side MOSFET Driver, Vc=4.5/18V, -40+125°C | ECOM |
| Mosfet Driver, Low Side, Sot-23-6 | Newark Electronics |
| IC: driver | TME |
| MOSFET DRVR 1.5A 1-OUT Inv 6-Pin SOT-23 T/R | EBV Elektronik |
