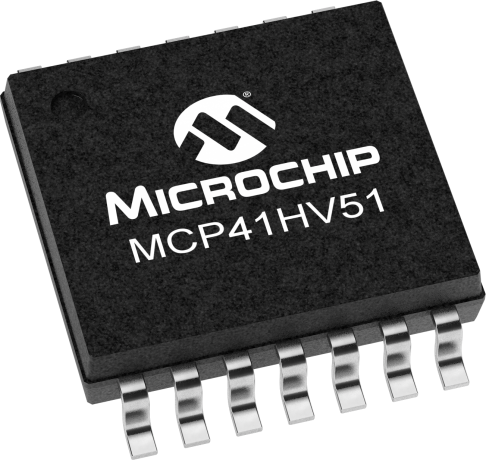

MCP41HV51-104E/ST Digital Potentiometers by Microchip Technology
8-Bit Single, +36V (±18V) Digital POT w/SPI
| Status: | Active |
|---|---|
| Series: | mcp41hv51 |
| RoHS: | Compliant |
Microchip's MCP41HVX1 and MCP45HVX1 digital potentiometer (Digipot) families offer the widest operating voltage range that is currently available on the market.
Where to Buy
Prices starting from US$0.96
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$1.43
|
1,496
in stock
|
Buy Now |
|
Newark Electronics
from US$1.56
|
1,463
in stock
|
Buy Now |
|
element14
from US$2.17
|
1,463
in stock
|
Buy Now |
|
Farnell
from US$1.88
|
1,463
in stock
|
Buy Now |
|
RS
from US$1.61
|
288
in stock
|
Buy Now |
|
Avnet America
from US$1.60
|
0
in stock
|
Buy Now |
|
TME
from US$2.22
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.10
|
0
in stock
|
Buy Now |
|
Ozdisan
from US$0.96
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
|
ECOM
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| +36V Terminal Voltage Range (DGND = V–) |
| ±18V Terminal Voltage Range(DGND = V– + 18V) |
| Analog: 10V to 36V (specified performance) |
| Digital: 2.7V to 5.5V |
| 8-bit: 255 Resistors (256 Taps) |
| 5kΩ |
| 10kΩ |
| 50kΩ |
| 100kΩ |
| 25 mA (for 5kΩ) |
| 12.5 mA (for 10 kΩ) |
| 6.5 mA (for 50 kΩ and 100 kΩ) |
| Zero-Scale to Full-Scale Wiper Operation |
| Low Wiper Resistance: 75Ω (Typical) |
| Absolute (Rheostat): 50 ppm Typical(0°C to +70°C) |
| Ratiometric (Potentiometer): 15 ppm Typical |
| SPI Serial Interface (10 MHz, Modes 0,0 and 1,1) |
| Shutdown Pin (SHDN) |
| Terminal Control (TCON) Register |
| Write Latch (WLAT) Pin to control update of Volatile Wiper Register (such as Zero Crossing) |
| Digital Supply (VL/DGND); 1.5V Typical |
| Analog Supply (V+ / V-); 3.5V Typical |
| Serial Interface Inactive Current (3 µA Typical) |
| 500 kHz Typical Bandwidth (-3 dB) Operation(5.0 kΩ Device) |
| Extended Temperature Range (-40°C to +125°C) |
| Package Types: TSSOP-14 and QFN-20 (5x5) |
Specifications
| Resolution (Number of Taps) | 255 |
|---|---|
| Resistance (ohms) k | 5, 10, 50, 100 |
| Pins | Packaging | 14 | TSSOP |
| Temp Range | -40C to +125C |
| Packing Media | Tube (96) |
Last 6 months Inventory & Pricing History
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.06 |
| Shipping Weight (kg) | 0.125 |
| Lead Count | 14 |
| Package Type | TSSOP |
| Package Width or Size | 4.4mm |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| 100k ohm, 8-Bit digipot,+/-18V or +36V operation,SPI interface,Volatile Memory | Microchip Technology |
| Volatile Digital Potentiometer, 100 Kohm, Single, Spi, Linear, 20%, 1.8 V Rohs Compliant: Yes |Microchip Technology MCP41HV51-104E/ST | Newark Electronics |
| IC, DIG POT, 100KOHMS, 255 TAPS, TSSOP14 | element14 |
| Microchip MCP41HV51-104E/ST | RS |
| Digital Potentiometer, Volatile, 100 kOhm, Single, 256 Steps, ?100 ppm/?C, 10 V to 36 V, 14 Pins | Avnet America |
| IC: digital potentiometer | TME |
| DIGITAL POTENTIOMETR 100K 256POS TSSOP14 | RS Americas |
| Digital Potentiometer, Volatile, 100 kOhm, Single, 256 Steps, �100 ppm/�C, 10 V to 36 V, 14 Pins | EBV Elektronik |
| Digital potentiometer | ECOM |
