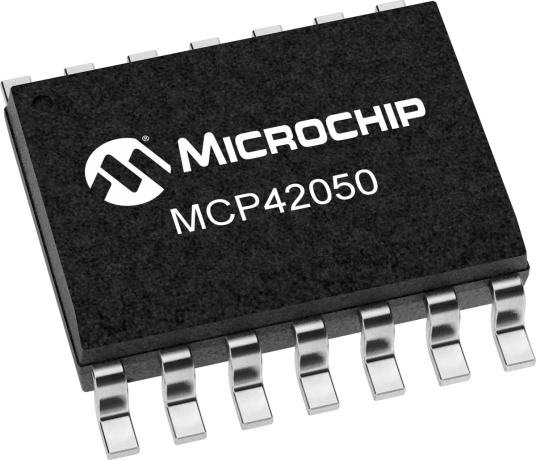

MCP42050-I/SL Digital Potentiometers by Microchip Technology
8-Bit Dual Digital POT with SPI
| Status: | Active |
|---|---|
| Series: | mcp42050 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$2.05
Features
| Two Resistor Networks |
| Potentiometer or Rheostat configuration options |
| 8-bit: 255 Resistors (256 Steps) |
| 50kΩ |
| Zero-Scale to Full-Scale Wiper operation |
| INL: 1LSB (max) |
| DNL: 1LSB (max) |
| SPI Compatible Serial interface |
| Standby current: 1uA (max) |
| Wide Operating Voltage: 2.7V to 5.5V |
| Wide Bandwidth (-3dB) Operation: 280 MHz (typ.) |
| Extended temperature range: -40°C to +125°C |
Specifications
| Resolution (Number of Taps) | 256 |
|---|---|
| Resistance (ohms) k | 50 |
| Pins | Packaging | 14 | SOIC |
| Temp Range | -40C to +85C |
| Packing Media | Tube (57) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| MCP41XXX/42XXX Datasheet |
Brochures |
|---|
| Quick Guide to Microchip Development Tools |
| Analog & Interface Guide (Volume 2) |
| Analog and Interface Product Selector Guide |
| Signal Chain Design Guide |
Supporting Collateral |
|---|
| Digital Potentiometer Design Guide |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.1432 |
| Shipping Weight (kg) | 0.280702 |
| Lead Count | 14 |
| Package Type | SOIC |
| Package Width or Size | .150In(3.90mm) |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| Digital Pot, 256 steps, SPI, 50kohms, dual channel | Microchip Technology |
| Digital Potentiometer, Volatile, 50 kOhm, Dual, 256 Steps, � 800 ppm/�C, 2.7 V to 5.5 V, 14 Pins, NSOIC | EBV Elektronik |
| Microchip MCP42050-I/SL | RS |
| Digital Potentiometer, Volatile, 50 kOhm, Dual, 256 Steps, ? 800 ppm/?C, 2.7 V to 5.5 V, 14 Pins, NSOIC | Avnet America |
| IC: digital potentiometer | TME |
