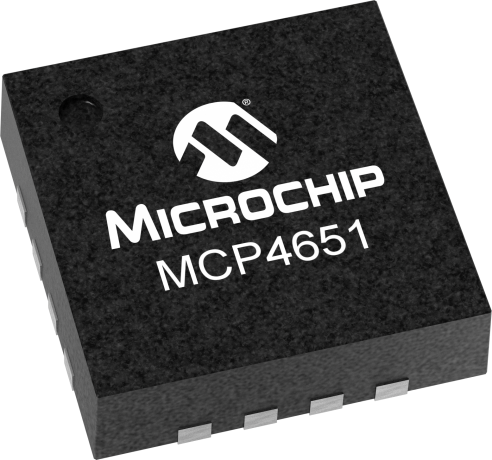

MCP4651T-104E/ML Digital Potentiometers by Microchip Technology
8-Bit Dual Digital POT with I2C™
| Status: | Active |
|---|---|
| Series: | mcp4651 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$0.88
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.28
|
2,469
in stock
|
Buy Now |
|
element14
from US$1.32
|
2,469
in stock
|
Buy Now |
|
Farnell
from US$1.16
|
2,469
in stock
|
Buy Now |
|
Microchip Technology
from US$0.88
|
499
in stock
|
Buy Now |
|
ECOM
from US$1.60
|
4
in stock
|
Buy Now |
|
RS
from US$0.94
|
0
in stock
|
Buy Now |
|
Future Electronics
from US$0.94
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.00
|
0
in stock
|
Buy Now |
|
TME
from US$0.95
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.95
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Dual Resistor Network |
| Potentiometer or Rheostat configuration options |
| 8-bit: 256 Resistors (257 Steps) |
| 5kΩ |
| 10kΩ |
| 50kΩ |
| 100kΩ |
| Zero-Scale to Full-Scale Wiper operation |
| Low Wiper Resistance: 75Ω (typ.) |
| Absolute (Rheostat): 50 ppm typical(0°C to 70°C) |
| Ratiometric (Potentiometer): 15 ppm typical |
| 100 kHz |
| 400 kHz |
| 3.4 MHz |
| Brown-out reset protection (1.5V typical) |
| Serial Interface Inactive current (2.5 uA typ.) |
| High-Voltage Tolerant Digital Inputs: Up to 12.5V |
| 2.7V to 5.5V - Device Characteristics Specified |
| 1.8V to 5.5V - Device Operation |
| 2 MHz (typ.) for 5.0 kΩ device |
| Extended temperature range (-40°C to +125°C) |
| AEC-Q100 Grade 1 quarlified |
Specifications
| Resolution (Number of Taps) | 257 |
|---|---|
| Resistance (ohms) k | 5,10,50,100 |
| Pins | Packaging | 16 | QFN |
| Temp Range | -40C to +125C |
| Packing Media | Tape and reel (3300) |
Last 6 months Inventory & Pricing History
Resources
Brochures |
|---|
| Analog and Interface Product Selector Guide |
| Signal Chain Design Guide |
| Analog Solutions for Automotive Applications Design Guide |
| Automotive Recommended Product Selector Guide |
Supporting Collateral |
|---|
| Digital Potentiometer Design Guide |
| Implementing a 10-Bit Digi Pot Using a Quad 8-Bit Digi Pot |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.0417 |
| Shipping Weight (kg) | 0.212121 |
| Lead Count | 16 |
| Package Type | QFN |
| Package Width or Size | 4x4x0.9mm |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| Digital Pot, 100K, -40 To 125Deg C | Newark Electronics |
| DIGITAL POT, 100K, -40 TO 125DEG C | element14 |
| Dual 8-bit, Volatile linear pot w/I2C | Microchip Technology |
| Dual Digital POT, 100kOhm, 257steps, I2C, RAM, -40+125°C | ECOM |
| Microchip MCP4651T-104E/ML | RS |
| Digital Potentiometer 256POS 100kOhm Dual Automotive 16-Pin QFN EP T/R | Future Electronics |
| Digital Potentiometer, Volatile, 100 kOhm, Dual, 257 Steps, ? 150 ppm/?C, 1.8 V to 5.5 V, 16 Pins | Avnet America |
| IC: digital potentiometer | TME |
| DUAL, 8BIT, V, I2C, POT16 QFN 4X4X0.9MM T/R | RS Americas |
| Digital Potentiometer, Volatile, 100 kOhm, Dual, 257 Steps, � 150 ppm/�C, 1.8 V to 5.5 V, 16 Pins | EBV Elektronik |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a MCP4651T-104E/ML?
Additional datasheets, footprints and schematics for MCP4651T-104E/ML are listed on our Part Details page. You can also find images and similar parts to MCP4651T-104E/ML on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for MCP4651T-104E/ML on our Product Comparison page. Access via the 'View Pricing & Stock' button to view MCP4651T-104E/ML price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does MCP4651T-104E/ML fall under?
The MCP4651T-104E/ML is listed under Semiconductors - ICs > Digital Potentiometers > Volatile Digital Potentiometers.
Can I view similar or alternative parts?
You can view similar parts to MCP4651T-104E/ML when available in the Volatile Digital Potentiometers range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the MCP4651T-104E/ML you can contact the distributor directly for product support, shipping queries etc.
Is the MCP4651T-104E/ML RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Microchip Technology.
Which authorised distributors for MCP4651T-104E/ML have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, Microchip Technology and ECOM have stock available or on a lead time for MCP4651T-104E/ML.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for MCP4651T-104E/ML often in real-time on the comparison pages.
What if I can't find stock of MCP4651T-104E/ML?
You can fill out our help required form which you can use to request a quote for MCP4651T-104E/ML from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
