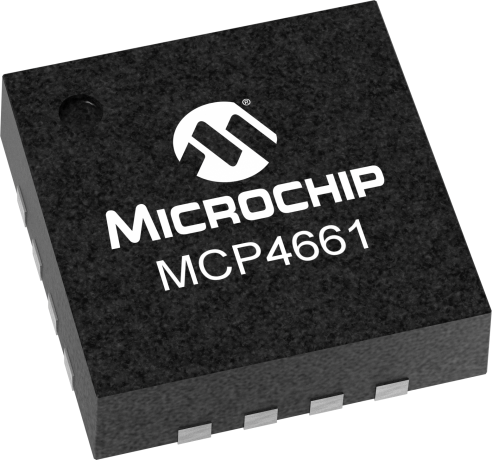

MCP4661T-103E/ML More Semiconductors - ICs by Microchip Technology
8-Bit Dual Digital POT with NVM and I2C™
| Status: | Active |
|---|---|
| Series: | mcp4661 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$1.16
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$1.22
|
23,100
in stock
|
Buy Now |
|
Newark Electronics
from US$1.58
|
1,599
in stock
|
Buy Now |
|
element14
from US$1.62
|
1,599
in stock
|
Buy Now |
|
Farnell
from US$1.44
|
1,599
in stock
|
Buy Now |
|
RS
from US$1.24
|
0
in stock
|
Buy Now |
|
Future Electronics
from US$1.17
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.24
|
0
in stock
|
Buy Now |
|
TME
from US$1.16
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.58
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
|
ECOM
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Dual Resistor Network |
| Potentiometer or Rheostat configuration options |
| 8-bit: 256 Resistors (257 Steps) |
| 5kΩ |
| 10kΩ |
| 50kΩ |
| 100kΩ |
| Zero-Scale to Full-Scale Wiper operation |
| Low Wiper Resistance: 75Ω (typ.) |
| Absolute (Rheostat): 50 ppm typical(0°C to 70°C) |
| Ratiometric (Potentiometer): 15 ppm typical |
| 100 kHz |
| 400 kHz |
| 3.4 MHz |
| Brown-out reset protection (1.5V typical) |
| Serial Interface Inactive current (2.5 uA typ.) |
| High-Voltage Tolerant Digital Inputs: Up to 12.5V |
| 2.7V to 5.5V - Device Characteristics Specified |
| 1.8V to 5.5V - Device Operation |
| 2 MHz (typ.) for 5.0 kΩ device |
| Extended temperature range (-40°C to +125°C) |
| AEC-Q100 Grade 1 quarlified |
Specifications
| Resolution (Number of Taps) | 257 |
|---|---|
| Resistance (ohms) k | 5, 10, 50, 100 |
| Pins | Packaging | 16 | QFN |
| Temp Range | -40C to +125C |
| Packing Media | Tape and reel (3300) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| MCP453X/455X/463X/465X -7/8-Bit Single/Dual I2C Digital POT with Volatile Memory |
| 7/8-Bit Single/Dual I2C Digital POT with Non-Volatile Memory |
Brochures |
|---|
| Analog and Interface Product Selector Guide |
| Signal Chain Design Guide |
| Analog Solutions for Automotive Applications Design Guide |
| Automotive Recommended Product Selector Guide |
Supporting Collateral |
|---|
| Digital Potentiometer Design Guide |
| Implementing a 10-Bit Digi Pot Using a Quad 8-Bit Digi Pot |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.0417 |
| Shipping Weight (kg) | 0.212121 |
| Lead Count | 16 |
| Package Type | QFN |
| Package Width or Size | 4x4x0.9mm |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| Dual 8-bit, Non-Volatile linear pot w/I2C | Microchip Technology |
| Digital Pot, 10K, -40 To 125Deg C | Newark Electronics |
| DIGITAL POT, 10K, -40 TO 125DEG C | element14 |
| Microchip MCP4661T-103E/ML | RS |
| DUAL, 8BIT, NV, I2C, POT | Future Electronics |
| Digital Potentiometer, Non-Volatile, 10 kOhm, Dual, 257 Steps, ? 150 ppm/?C, 2.7 V to 5.5 V | Avnet America |
| IC: digital potentiometer | TME |
| DUAL, 8BIT, NV, I2C, POT16 QFN 4X4X0.9MM T/R | RS Americas |
| Digital Potentiometer, Non-Volatile, 10 kOhm, Dual, 257 Steps, � 150 ppm/�C, 2.7 V to 5.5 V | EBV Elektronik |
| Digital potentiometer | ECOM |
