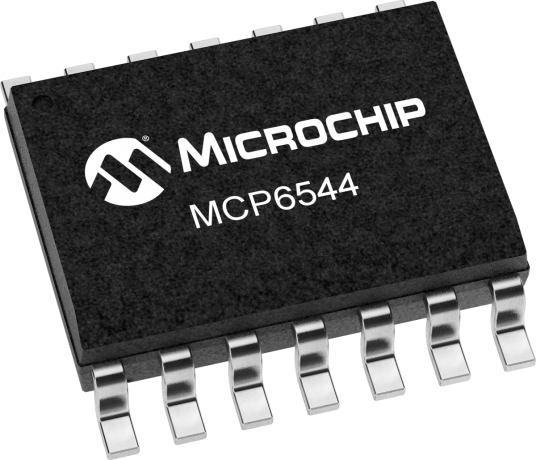

MCP6544-I/SL More Semiconductors - ICs by Microchip Technology
Push-Pull Output Sub-Microamp Comparators
| Status: | Active |
|---|---|
| Series: | MCP6544 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$0.98
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$0.98
|
17,064
in stock
|
Buy Now |
|
Newark Electronics
from US$1.35
|
855
in stock
|
Buy Now |
|
element14
from US$1.19
|
855
in stock
|
Buy Now |
|
Farnell
from US$1.24
|
855
in stock
|
Buy Now |
|
RS
from US$1.05
|
394
in stock
|
Buy Now |
|
Future Electronics
from US$1.09
|
0
in stock
|
Buy Now |
|
TME
from US$1.20
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Quad, Push-Pull Outputs |
| 4us Propagation Delay |
| Low Operating Voltage, 1.6V to 5.5V |
| Low Operating Current, 600nA (typical) |
| Rail-to-Rail Input/Output |
| AEC-Q100 Grade 1 |
Specifications
| # of Channels | 4 |
|---|---|
| Typical Prop Delay (ns) | 4000 |
| Output Type | Push Pull |
| Supply Voltage Min. (V) | 1.6 |
| Supply Voltage Max. (V) | 5.5 |
| Iq Typical (µA) | 0.6 |
| Iq Max (µA) | 1 |
| Vos Max. (µV) | 7000 |
| Operating Temperature Range (°C) | -40 to 125 |
| Pins | Packaging | 14 | SOIC |
| Temp Range | -40C to +85C |
| Packing Media | Tube (57) |
Last 6 months Inventory & Pricing History
Resources
Board Design Files |
|---|
| SPICE Model for MCP6541/1R/1U/2/3/4 Devices |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.1432 |
| Shipping Weight (kg) | 0.280702 |
| Lead Count | 14 |
| Package Type | SOIC |
| Package Width or Size | .150In(3.90mm) |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| Quad 1.6V Push/Pull Comparator, I temp | Microchip Technology |
| Comparator, Sub-Microamp, Quad, Soic-14 | Newark Electronics |
| COMPARATOR, SUB-MICROAMP, QUAD, SOIC-14 | element14 |
| Microchip MCP6544-I/SL | RS |
| QUAD 1.6V PUSH/PULL COMPARATOR, I TEMP | Future Electronics |
| IC: comparator | TME |
| Analogue Comparator, Sub-Microamp, 4 Channels, 1.6V to 5.5V, SOIC, 14 Pins | EBV Elektronik |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a MCP6544-I/SL?
Additional datasheets, footprints and schematics for MCP6544-I/SL are listed on our Part Details page. You can also find images and similar parts to MCP6544-I/SL on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for MCP6544-I/SL on our Product Comparison page. Access via the 'View Pricing & Stock' button to view MCP6544-I/SL price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does MCP6544-I/SL fall under?
The MCP6544-I/SL is listed under Semiconductors - ICs > More Semiconductors - ICs.
Can I view similar or alternative parts?
You can view similar parts to MCP6544-I/SL when available in the More Semiconductors - ICs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the MCP6544-I/SL you can contact the distributor directly for product support, shipping queries etc.
Is the MCP6544-I/SL RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Microchip Technology.
Which authorised distributors for MCP6544-I/SL have stock available?
Authorised distributors including Microchip Technology, Newark Electronics, element14, Farnell and RS have stock available or on a lead time for MCP6544-I/SL.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for MCP6544-I/SL often in real-time on the comparison pages.
What if I can't find stock of MCP6544-I/SL?
You can fill out our help required form which you can use to request a quote for MCP6544-I/SL from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
