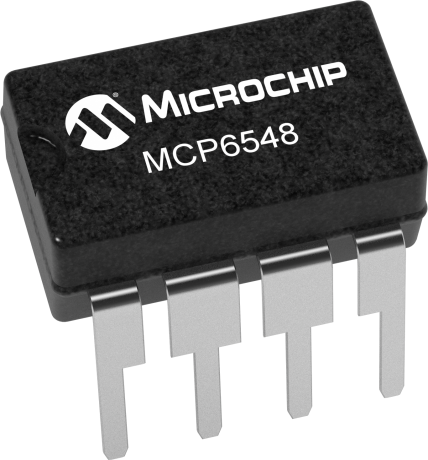

MCP6548-E/P Amplifiers & Comparators by Microchip Technology
Open-Drain Output Sub-Microamp Comparators
| Status: | Active |
|---|---|
| Series: | MCP6548 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$0.29
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.29
|
509
in stock
|
Buy Now |
|
Microchip Technology
from US$0.42
|
420
in stock
|
Buy Now |
|
Avnet America
from US$0.48
|
0
in stock
|
Buy Now |
|
TME
from US$0.57
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.50
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.37
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Open Drain Output |
| Output can be level shifted up to 9V via external pull-up resistor |
| 4us Propagation Delay |
| Low Operating Voltage, 1.6V to 5.5V |
| Low Operating Current, 600nA (typical) |
| Chip Select Pin |
| AEC-Q100 Grade 1 |
Specifications
| # of Channels | 1 |
|---|---|
| Typical Prop Delay (ns) | 4000 |
| Output Type | Open Drain |
| Supply Voltage Min. (V) | 1.6 |
| Supply Voltage Max. (V) | 5.5 |
| Iq Typical (µA) | 0.6 |
| Iq Max (µA) | 1 |
| Vos Max. (µV) | 7000 |
| Operating Temperature Range (°C) | -40 to 125 |
| Pins | Packaging | 8 | PDIP |
| Temp Range | -40C to +125C |
| Packing Media | Tube (60) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| MCP6546/6R/6U/7/8/9 Datasheet |
Board Design Files |
|---|
| SPICE Model for MCP6546/6R/6U/7/8/9 Devices |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.4867 |
| Shipping Weight (kg) | 0.9 |
| Lead Count | 8 |
| Package Type | PDIP |
| Package Width or Size | .300in |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| Comparator, Single, Dip-8 | Newark Electronics |
| Single 1.6V Open Drain Comparator w/ CS, E temp | Microchip Technology |
| Comparator Single R-R I/O 5.5V 8-Pin PDIP Tube | Avnet America |
| IC: comparator | TME |
| MICROCHIP MCP6548-E/P COMPARATOR, OPEN DRAIN O/P, 1.6 TO 5.5 V 8-PIN PDIP | RS Americas |
| COMP, 1.6V, SINGLE, O-D, W/CS, 8DIP | Farnell |
