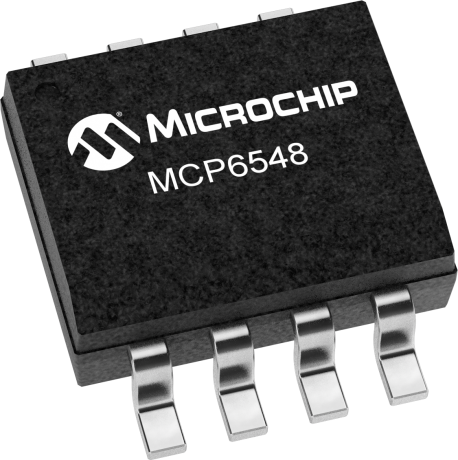

MCP6548-E/SN Amplifiers & Comparators by Microchip Technology
Open-Drain Output Sub-Microamp Comparators
| Status: | Active |
|---|---|
| Series: | MCP6548 |
| RoHS: | Compliant |
Features
| Open Drain Output |
| Output can be level shifted up to 9V via external pull-up resistor |
| 4us Propagation Delay |
| Low Operating Voltage, 1.6V to 5.5V |
| Low Operating Current, 600nA (typical) |
| Chip Select Pin |
| AEC-Q100 Grade 1 |
Specifications
| # of Channels | 1 |
|---|---|
| Typical Prop Delay (ns) | 4000 |
| Output Type | Open Drain |
| Supply Voltage Min. (V) | 1.6 |
| Supply Voltage Max. (V) | 5.5 |
| Iq Typical (µA) | 0.6 |
| Iq Max (µA) | 1 |
| Vos Max. (µV) | 7000 |
| Operating Temperature Range (°C) | -40 to 125 |
| Pins | Packaging | 8 | SOIC |
| Temp Range | -40C to +125C |
| Packing Media | Tube (100) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| MCP6546/6R/6U/7/8/9 Datasheet |
Board Design Files |
|---|
| SPICE Model for MCP6546/6R/6U/7/8/9 Devices |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.078 |
| Shipping Weight (kg) | 0.25 |
| Lead Count | 8 |
| Package Type | SOIC |
| Package Width or Size | .150In(3.90mm) |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| Single 1.6V Open Drain Comparator w/ CS, E temp | Microchip Technology |
| Comparator, Single, Soic-8 | Newark Electronics |
| IC: comparator | TME |
| COMP, 1.6V, SINGLE, O-D, W/CS, 8SOIC | Farnell |
| Comparator Single R-R I/O 5.5V 8-Pin SOIC N Tube | Avnet Silica |
