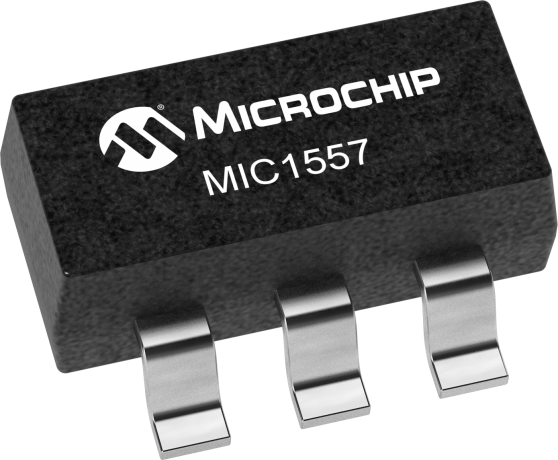

MIC1557YM5-TR Clock,Timing & Frequency Management by Microchip Technology

IttyBitty® CMOS RC Oscillator

Semiconductors - ICs
> Clock,Timing & Frequency Management
> Timers, Oscillators & Pulse Generators
Status: Active
Series: MIC1557
RoHS: Compliant
Download Datasheet Visit Manufacturer Site View Pricing & Stock
The MIC1555 IttyBitty® CMOS RC timer/oscillator and MIC1557 IttyBitty® CMOS RC oscillator are designed to provide rail-to-rail pulses for precise time delay or frequency generation.The devices are similar in function to the industry standard "555", without a frequency control (FC) pin or an opencollector discharge (D) pin. The threshold pin (TH) has precedence over the trigger (TR) input, ensuring that the BiCMOS output is off when TR is high.The MIC1555 may be used as an astable (oscillator) or monostable (one-shot) with separate threshold and trigger inputs. In the one-shot mode, the output pulse width is precisely controlled by an external resistor and a capacitor.Time delays may be accurately controlled from microseconds to hours. In the oscillator mode, the output is used to provide precise feedback, with a minimum of one resistor and one capacitor producing a 50% duty cycle square wave.The MIC1557 is designed for astable (oscillator) operation only, with a chip select/reset (CS) input for low power shutdown. One resistor and one capacitor provide a 50% duty cycle square wave. Other duty-cycle ratios may be produced using two diodes and two resistors. The MIC1555/7 is powered from a +2.7V to +18V supply voltage.The MIC1555/7 is available in the SOT-23-5 5-pin package, and is rated for -40°C to +85°C ambient temperature range.

Where to Buy

Prices starting from US$0.36

Distributor Stock
Logo for Microchip Technology Inc
Microchip Technology
from US$0.82
531,005
in stock
 Buy Now
Logo for Future Electronics NA
Future Electronics
from US$0.36
21,000
in stock
 Buy Now
Logo for element14 Singapore
element14
from US$0.38
9,171
in stock
 Buy Now
Logo for Farnell UK
Farnell
from US$0.37
9,171
in stock
 Buy Now
Logo for Newark
Newark Electronics
from US$0.40
1,838
in stock
 Buy Now
Logo for TME
TME
from US$0.68
1,778
in stock
 Buy Now
Logo for ECOM
ECOM
from US$1.03
30
in stock
 Buy Now
Logo for RS UK
RS
from US$0.37
0
in stock
 Buy Now
Logo for Richardson RFPD
Richardson RFPD
-
0
in stock
 Buy Now
Logo for EBV Elektronik
EBV Elektronik
-
0
in stock
 Buy Now
Logo for Avnet Silica
Avnet Silica
-
0
in stock
 Buy Now
Buy Now

Features

+2.7V to +18V operation
<1µA typical shutdown mode (MIC1557)
200µA typical (TRG and THR low) at 3V supply
Timing from microseconds to hours
"Zero" leakage trigger and threshold inputs
50% square wave with one Resistor, one Capacitor
Threshold input precedence over trigger input
<15O output on resistance
No output cross-conduction current spikes
<0.005%/°C temperature stability
<0.055%/V supply stability
Small SOT-23-5 surface mount package

Specifications

Product Type Timers
Voltage 2.7 - 18
Pull Range (±PPM) 0
Pins | Packaging 5 | SOT-23
Temp Range -40C to +85C
Packing Media Tape and reel (3000)

Last 6 months Inventory & Pricing History

Environmental Information

JEDEC Indicator e4
ROHS Compliant
China EFUP Compliant
Device Weight (g) 0.0174
Shipping Weight (kg) 0.049
Lead Count 5
Package Type SOT-23
Soldering Composition NiPdAu

Alternative Descriptions

2.7V to 18V, '555' RC Timer/Oscillator with Shutdown | Microchip Technology
MIC1557 Series 5 MHz 20 mA IttyBitty RC Timer / Oscillator - SOT-23-5 | Future Electronics
RC TIMER/OSCILLATOR, ITTYBITTY, SMD | element14
Rc Timer/Oscillator, -40 To 85Deg C | Newark Electronics
IC: peripheral circuit | TME
Timer, Fmax=5MHz, Iq=0.2mA, Vcc=2.7/18V, -40+85 °C | ECOM
Microchip MIC1557YM5-TR Oscillator | RS
Standard Timer Single -40C 85C 5-Pin SOT-23 T/R | Richardson RFPD
Timer, Oscillator IC, IttyBitty CMOS RC, Astable, 5 MHz, 2.7 V to 18 V, SOT-23-5 | EBV Elektronik
