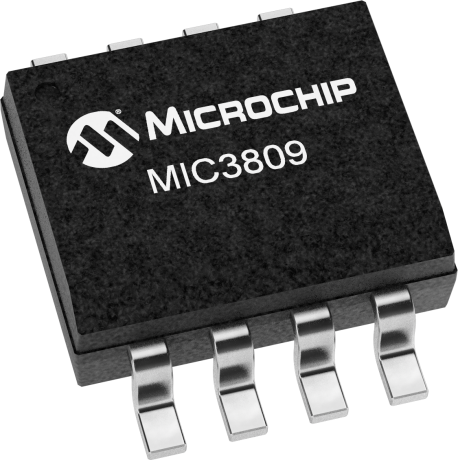

MIC3809YM-TR More Semiconductors - ICs by Microchip Technology
Push-Pull DC/DC Controller w/Turn On Threshold of 4.3V
| Status: | Active |
|---|---|
| Series: | MIC3809 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$1.48
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$2.53
|
7,581
in stock
|
Buy Now |
|
element14
from US$2.59
|
7,581
in stock
|
Buy Now |
|
Farnell
from US$2.29
|
7,581
in stock
|
Buy Now |
|
Microchip Technology
from US$1.90
|
7,500
in stock
|
Buy Now |
|
RS
from US$2.78
|
0
in stock
|
Buy Now |
|
Future Electronics
from US$1.48
|
0
in stock
|
Buy Now |
|
TME
from US$2.46
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Dual output drive stages in push-pull configuration |
| Leading edge current-sense blanking |
| 130µA typical start-up current |
| 1mA typical run current |
| Operation to 1MHz |
| Internal soft start |
| On-chip error amplifier with 4MHz gain bandwidth product |
| On-chip VDD clamping |
| Output drive stages capable of 500mA peak source current, 1A peak sink current |
Specifications
| Supported Topologies | Push-Pull, Half Bridge, Full Bridge |
|---|---|
| Supported Outputs | 1 |
| Minimum Input Voltage (V) | 4.1 |
| Maximum Input Voltage (V) | 15 |
| Duty Cycle Max (%) | 0.49 |
| Operating Frequency (Hz) | Adj. to 1M |
| Soft Start | True |
| Internal Voltage Bias | True |
| Current Limit / Short Circuit Protection | True |
| Input UVLO Typ (V) | 4.3 |
| Operating Supply Current (mA) | 1 |
| Package | 8/SOP, 8/MSOP |
| Pins | Packaging | 8 | SOIC |
| Temp Range | -40C to +85C |
| Packing Media | Tape and reel (2500) |
Last 6 months Inventory & Pricing History
Environmental Information
| JEDEC Indicator | e4 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.075 |
| Shipping Weight (kg) | 0.25 |
| Lead Count | 8 |
| Package Type | SOIC |
| Package Width or Size | 3.90mm(.150in) |
| Soldering Composition | NiPdAu |
Alternative Descriptions
| Pwm Controller, 1Mhz, Soic-8 | Newark Electronics |
| PWM CONTROLLER, 1MHZ, SOIC-8 | element14 |
| Push-Pull DC/DC Controller | Microchip Technology |
| Microchip MIC3809YM-TR | RS |
| MIC3809 Series 2 mA 1 MHz Surface Mount Push-Pull PWM Controller - SOIC-8 | Future Electronics |
| IC: PMIC | TME |
