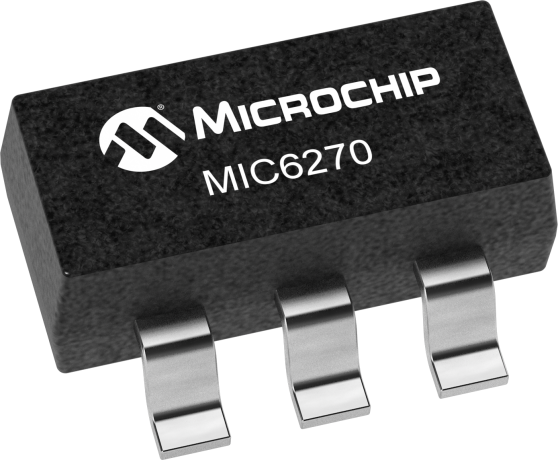

MIC6270YM5-TR Amplifiers & Comparators by Microchip Technology
300uA, 0.6us, Open-Collector Comparator
| Status: | Active |
|---|---|
| Series: | MIC6270 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$0.32
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$0.32
|
480,729
in stock
|
Buy Now |
|
Newark Electronics
from US$0.46
|
39,230
in stock
|
Buy Now |
|
element14
from US$0.45
|
39,230
in stock
|
Buy Now |
|
Farnell
from US$0.38
|
39,230
in stock
|
Buy Now |
|
Future Electronics
from US$0.36
|
24,000
in stock
|
Buy Now |
|
RS
from US$0.38
|
14,450
in stock
|
Buy Now |
|
ECOM
from US$0.40
|
25
in stock
|
Buy Now |
|
TME
from US$0.39
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| 2V to 36V supply |
| 300µA supply current independent of supply |
| 25nA input bias current |
| ±5nA input offset current |
| ±3mV input offset voltage |
| Input common-mode voltage range includes ground |
| Differential input voltage range equal to the power supply voltage |
| 250mV at 4mA output saturation voltage |
| Output compatible with TTL, DTL, ECL, MOS, and CMOS logic |
Specifications
| # of Channels | 1 |
|---|---|
| Typical Prop Delay (ns) | 600 |
| Output Type | Open Drain |
| Supply Voltage Min. (V) | 2 |
| Supply Voltage Max. (V) | 36 |
| Iq Typical (µA) | 300 |
| Iq Max (µA) | 900 |
| Vos Max. (µV) | 5000 |
| Operating Temperature Range (°C) | -40 to 85 |
| Pins | Packaging | 5 | SOT-23 |
| Temp Range | -40C to +85C |
| Packing Media | Tape and reel (3000) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| MIC6270 Data Sheet |
Application Notes |
|---|
| Micrel AN 15 - Practical Switching Regulator Circuits - Practical Switching Regulator Circuits |
Environmental Information
| JEDEC Indicator | e4 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.0174 |
| Shipping Weight (kg) | 0.049 |
| Lead Count | 5 |
| Package Type | SOT-23 |
| Soldering Composition | NiPdAu |
Alternative Descriptions
| General Purpose IttyBitty Comparator | Microchip Technology |
| Analogue Comparator, Precision Voltage, 1, 600 Ns, 2V To 36V, Sot-23, 5 Rohs Compliant: Yes |Microchip Technology MIC6270YM5-TR | Newark Electronics |
| COMPARATOR, 36V, 0.6US, 5SOT23 | element14 |
| MIC6270 Series Single 36 V 250 nA IttyBitty™ Comparator - SOT-23-5 | Future Electronics |
| Microchip MIC6270YM5-TR Comparator | RS |
| Comparator, offset max 9mV, Uc=2/36V, -40+125°C | ECOM |
| IC: comparator | TME |
| Comparator Single 36V �18V 5-Pin SOT-23 T/R | EBV Elektronik |
