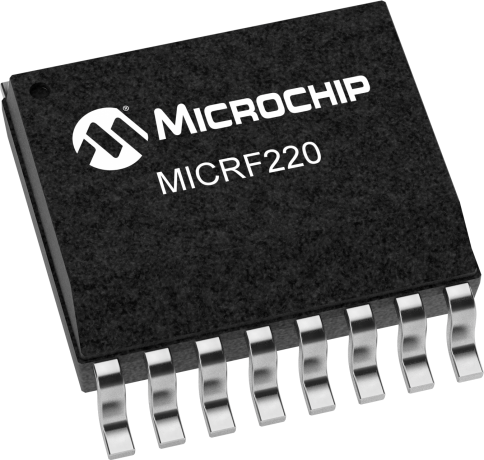

MICRF220AYQS-TR MICRF220 by Microchip Technology
300MHz to 450MHz, 3.0V to 3.6V, 6mA, <10kbps ASK Receiver with RSSI and Shutdown
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
The MICRF220 achieves -110dBm sensitivity at a bit rate of 1kbps with 0.1% BER. Four demodulator filter bandwidths are selectable in binary steps from 1625Hz to 13kHz at 433.92MHz, allowing the device to support bit rates up to 20kbps. The device operates from a supply voltage of 3.0V to 3.6V, and typically consumes 4.3mA of supply current at 315MHz and 6.0mA at 433.92MHz. A shutdown mode reduces supply current to 0.1µA typical. The squelch feature decreases the activity on the data output pin until valid bits are detected while maintaining overall receiver sensitivity.
Where to Buy
Prices starting from US$1.28
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.34
|
303
in stock
|
Buy Now |
|
element14
from US$1.42
|
303
in stock
|
Buy Now |
|
Farnell
from US$1.30
|
303
in stock
|
Buy Now |
|
Future Electronics
from US$1.28
|
0
in stock
|
Buy Now |
|
TME
from US$1.29
|
0
in stock
|
Buy Now |
|
Microchip Technology
from US$1.85
|
0
in stock
|
Buy Now |
|
Richardson RFPD
from US$1.45
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| -110dBm sensitivity at 1kbps with 0.1% BER |
| Supports bit rates up to 20kbps at 433.92MHz |
| 25dB image-reject mixer |
| No IF filter required |
| 60dB analog RSSI output range |
| 3.0V to 3.6V supply voltage range |
| 4.3mA supply current at 315MHz |
| 6.0mA supply current at 434MHz |
| 0.1µA supply current in shutdown mode |
| Data output squelch until valid bits detected |
| 16-pin QSOP package (4.9mm x 6.0mm) |
| -40°C to +105°C temperature range |
| 3kV HBM ESD Rating |
Specifications
| Type | ASK/OOK Receiver |
|---|---|
| Power Output (dBm) | 10.00 |
| Pin Count | 16 |
| Packages | QSOP |
| RF Receiver | True |
| Operating Temperature | -40C to +105C |
| RF Data Rate (Kbps) | 20 |
| Frequency Range | 300MHz-450MHz |
| Input Sensitivity (dBm) | -110.00 |
| Rx Power Consumption (mA) | 4.30 |
| Standby Current (µA) | 0.10 |
| Temperature Range | -40C to +105C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Rf Receiver, 20Kbps, 300-450Mhz, Qsop-16 | Newark Electronics |
| RF RECEIVER, 20KBPS, 300-450MHZ, QSOP-16 | element14 |
| MICRF220 Series 20 kbps 4.3 mA ASK/OOK Receiver with RSSI and Squelch - QSOP-16 | Future Electronics |
| IC: RF receiver | TME |
| RF Receiver ASK/OOK 3.3V 16-Pin QSOP T/R | Richardson RFPD |
| ASK / OOK Receiver, 300 MHz to 450 MHz, 16 Pins, QSOP | EBV Elektronik |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a MICRF220AYQS-TR?
Additional datasheets, footprints and schematics for MICRF220AYQS-TR are listed on our Part Details page. You can also find images and similar parts to MICRF220AYQS-TR on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for MICRF220AYQS-TR on our Product Comparison page. Access via the 'View Pricing & Stock' button to view MICRF220AYQS-TR price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does MICRF220AYQS-TR fall under?
The MICRF220AYQS-TR is listed under MICRF220.
Can I view similar or alternative parts?
You can view similar parts to MICRF220AYQS-TR when available in the MICRF220 range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the MICRF220AYQS-TR you can contact the distributor directly for product support, shipping queries etc.
Is the MICRF220AYQS-TR RoHS compliant?
This part has not been flagged as RoHS Compliant.
Which authorised distributors for MICRF220AYQS-TR have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, Future Electronics and TME have stock available or on a lead time for MICRF220AYQS-TR.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for MICRF220AYQS-TR often in real-time on the comparison pages.
What if I can't find stock of MICRF220AYQS-TR?
You can fill out our help required form which you can use to request a quote for MICRF220AYQS-TR from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
