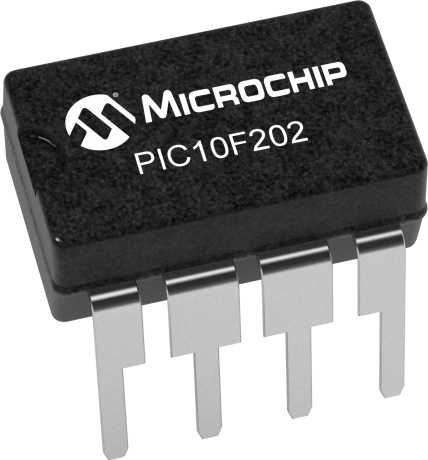

PIC10F202-I/P Microcontrollers - MCU by Microchip Technology
Newer Device Available PIC10F322
| Status: | Active |
|---|---|
| Series: | pic10f202 |
| RoHS: | Compliant |
The PIC10F202 is a low-cost, high-performance, 8-bit, fully-static, Flash-based CMOS microcontroller. It employs a RISC architecture with only 33 single-word/ single-cycle instructions. All instructions are single cycle (1 µs) except for program branches, which take two cycles. It delivers performance in an order of magnitude higher than competitors in the same price category. The easy-to-use and easy to remember instruction set reduces development time significantly.
Where to Buy
Prices starting from US$0.59
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$0.59
|
12,326
in stock
|
Buy Now |
|
RS
from US$0.82
|
1,314
in stock
|
Buy Now |
|
Newark Electronics
from US$0.84
|
681
in stock
|
Buy Now |
|
element14
from US$0.76
|
681
in stock
|
Buy Now |
|
Farnell
from US$0.78
|
681
in stock
|
Buy Now |
|
Conrad
from US$1.25
|
145
in stock
|
Buy Now |
|
Schukat Electronic
from US$0.78
|
145
in stock
|
Buy Now |
|
Future Electronics
from US$0.62
|
0
in stock
|
Buy Now |
|
TME
from US$0.73
|
0
in stock
|
Buy Now |
|
Buerklin
from US$0.95
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
|
ECOM
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Available in either SOT-23 or 2x3 DFN packaging |
| Precision 4 MHz internal oscillator |
| Baseline Core with 33 Instructions, 2 Stack Levels |
| All single-cycle Instructions except for program branches which are two cycles |
| 12-bit wide instructions |
| 8-bit wide data path |
| 25 mA source/sink current I/O |
| Low power (100nA) sleep current |
| One 8-bit timer (TMR0) |
| Watchdog timer (WDT) |
| In Circuit Serial Programming™ (ICSP™) capability |
| In-Circuit debugging support |
| Programmable code protection |
Specifications
| Program Memory Type | Flash |
|---|---|
| Program Memory Size (KB) | 0.75 |
| CPU Speed (MIPS/DMIPS) | 1 |
| Data EEPROM (bytes) | 0 |
| Capture/Compare/PWM (CCP) | 0 |
| Max 8 Bit Digital Timers | 1 |
| Number of ADCs | 0 |
| ADC Channels | 0 |
| Max ADC Resolution (bits) | 0 |
| Number of Comparators | 0 |
| Temp. Range Min. | -40 |
| Temp. Range Max. | 125 |
| Operation Voltage Max.(V) | 5.5 |
| Operation Voltage Min.(V) | 2 |
| Pin Count | 6 |
| Low Power | No |
| Pins | Packaging | 8 | PDIP |
| Temp Range | -40C to +85C |
| Packing Media | Tube (60) |
Last 6 months Inventory & Pricing History
Resources
Board Design Files |
|---|
| PIC10F2XX Universal Programmer Adapter Pin 1 Guide |
| PIC10F2XX Hobby Kit Pin 1 Guide |
| PIC10F202 IBIS Model |
Brochures |
|---|
| 8-bit PIC® Microcontroller Solutions |
| Intelligent Lighting Solutions Brochure |
| Baseline PIC® Microcontrollers Product Overview |
| MPLAB® X IDE Product Overview |
Legacy Collaterals |
|---|
| AN1229 - Class B Safety Software Library for PIC MCUs and dsPIC DSCs |
Programming Specifications |
|---|
| PIC10F200/202/204/206 Memory Programming Specification |
Supporting Collateral |
|---|
| Understanding Reset Events on the PIC10F20X |
| Detecting Multiple Voltages Using the PIC10F204/206 Comparator |
| PIC Microcontroller Compiled Tips 'n Tricks Guide |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.4867 |
| Shipping Weight (kg) | 0.9 |
| Lead Count | 8 |
| Package Type | PDIP |
| Package Width or Size | .300in |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| N/A | Microchip Technology |
| Microchip PIC10F202-I/P Microcontroller | RS |
| 8 Bit Microcontroller, Flash, Pic10F2Xx, 4 Mhz, 768 Byte, 24 Byte, 8, Dip Rohs Compliant: Yes |Microchip Technology PIC10F202-I/P | Newark Electronics |
| MCU, 8BIT, PIC10, 4MHZ, DIP-8 | element14 |
| Microchip Technology PIC10F202-I/P Embedded-Mikrocontroller PDIP-8 8-Bit 4 MHz Anzahl I/O 3 | Conrad |
| 512x12 Flash 4I/O 4MHz DIP8 | Schukat Electronic |
| PIC10F Series 0.75 KB Flash 16 B RAM SMT 8-Bit Flash Microcontroller - PDIP-8 | Future Electronics |
| IC: PIC microcontroller | TME |
| PIC Mikrocontroller, 8 bit, 4 MHz, DIP-8, PIC10F202-I/P | Buerklin |
| MCU 8-bit PIC10 PIC RISC 768byte Flash 2.5V/3.3V/5V 8-Pin PDIP Tube | EBV Elektronik |
| Microcontroller, FLASH | ECOM |
