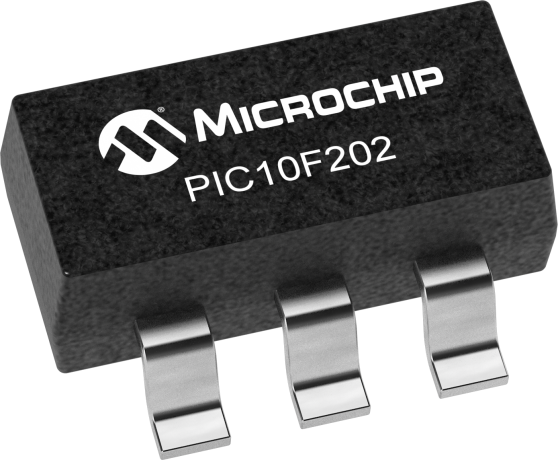

PIC10F202T-I/OT Microcontrollers - MCU by Microchip Technology
Newer Device Available PIC10F322
| Status: | Active |
|---|---|
| Series: | pic10f202 |
| RoHS: | Compliant |
The PIC10F202 is a low-cost, high-performance, 8-bit, fully-static, Flash-based CMOS microcontroller. It employs a RISC architecture with only 33 single-word/ single-cycle instructions. All instructions are single cycle (1 µs) except for program branches, which take two cycles. It delivers performance in an order of magnitude higher than competitors in the same price category. The easy-to-use and easy to remember instruction set reduces development time significantly.
