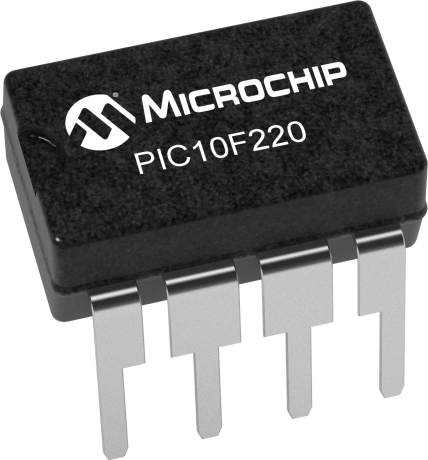

PIC10F220-I/P Microcontrollers - MCU by Microchip Technology
Newer Device Available PIC10F322
| Status: | Active |
|---|---|
| Series: | pic10f220 |
| RoHS: | Compliant |
ZThe PIC10F220 is a low-cost, high-performance, 8-bit, fully-static Flash-based CMOS microcontroller. It employs a RISC architecture with only 33 single-word/ single-cycle instructions. All instructions are singlecycle (1 µs) except for program branches, which take two cycles. The PIC10F220 delivers performance in an order of magnitude higher than their competitors in the same price category. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8-bit microcontrollers in its class. The easy-to-use and easy to remember instruction set reduces development time significantly. The PIC10F220 are also equipped with special features that reduce system cost and power requirements.
Where to Buy
Prices starting from US$0.59
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$0.59
|
9,260
in stock
|
Buy Now |
|
Newark Electronics
from US$0.73
|
675
in stock
|
Buy Now |
|
element14
from US$0.80
|
675
in stock
|
Buy Now |
|
Farnell
from US$0.78
|
675
in stock
|
Buy Now |
|
RS
from US$0.82
|
610
in stock
|
Buy Now |
|
TME
from US$1.16
|
143
in stock
|
Buy Now |
|
Future Electronics
from US$0.72
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Available in either SOT-23 or 2x3 DFN packaging |
| 2 channels 8-bit ADC (Analog to Digital Converter) |
| Precision 4/8 MHz internal oscillator |
| 1.125ms DRT (Device Reset Timer) |
| Baseline Core with 33 Instructions, 2 Stack Levels |
| All single-cycle Instructions except for program branches which are two cycles |
| 12-bit wide instructions |
| 8-bit wide data path |
| 25 mA source/sink current I/O |
| Low power (100nA) sleep current |
| One 8-bit timer (TMR0) |
| Watchdog timer (WDT) |
| In Circuit Serial Programming™ (ICSP™) capability |
| In-Circuit debugging support |
| Programmable code protection |
Specifications
| Program Memory Type | Flash |
|---|---|
| Program Memory Size (KB) | 0.375 |
| CPU Speed (MIPS/DMIPS) | 2 |
| Data EEPROM (bytes) | 0 |
| Capture/Compare/PWM (CCP) | 0 |
| Max 8 Bit Digital Timers | 1 |
| Number of ADCs | 1 |
| ADC Channels | 2 |
| Max ADC Resolution (bits) | 8 |
| Number of Comparators | 0 |
| Temp. Range Min. | -40 |
| Temp. Range Max. | 125 |
| Operation Voltage Max.(V) | 5.5 |
| Operation Voltage Min.(V) | 2 |
| Pin Count | 6 |
| Low Power | No |
| Pins | Packaging | 8 | PDIP |
| Temp Range | -40C to +85C |
| Packing Media | Tube (60) |
