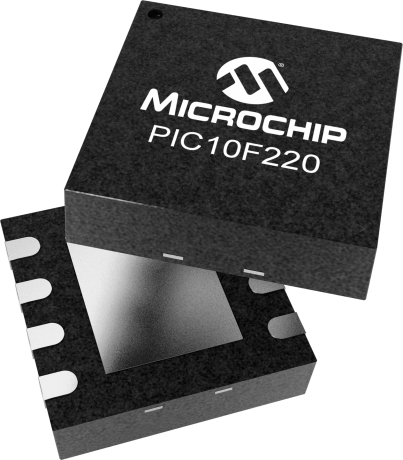

PIC10F220T-I/MC by Microchip Technology
Newer Device Available PIC10F322
| Status: | Active |
|---|---|
| Series: | pic10f220 |
| RoHS: | Compliant |
ZThe PIC10F220 is a low-cost, high-performance, 8-bit, fully-static Flash-based CMOS microcontroller. It employs a RISC architecture with only 33 single-word/ single-cycle instructions. All instructions are singlecycle (1 µs) except for program branches, which take two cycles. The PIC10F220 delivers performance in an order of magnitude higher than their competitors in the same price category. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8-bit microcontrollers in its class. The easy-to-use and easy to remember instruction set reduces development time significantly. The PIC10F220 are also equipped with special features that reduce system cost and power requirements.
Where to Buy
Prices starting from US$0.47
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.63
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.62
|
0
in stock
|
Buy Now |
|
TME
from US$0.61
|
0
in stock
|
Buy Now |
|
Microchip Technology
from US$0.54
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.35
|
0
in stock
|
Buy Now |
|
element14
from US$0.75
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.47
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Available in either SOT-23 or 2x3 DFN packaging |
| 2 channels 8-bit ADC (Analog to Digital Converter) |
| Precision 4/8 MHz internal oscillator |
| 1.125ms DRT (Device Reset Timer) |
| Baseline Core with 33 Instructions, 2 Stack Levels |
| All single-cycle Instructions except for program branches which are two cycles |
| 12-bit wide instructions |
| 8-bit wide data path |
| 25 mA source/sink current I/O |
| Low power (100nA) sleep current |
| One 8-bit timer (TMR0) |
| Watchdog timer (WDT) |
| In Circuit Serial Programming™ (ICSP™) capability |
| In-Circuit debugging support |
| Programmable code protection |
Specifications
| Program Memory Type | Flash |
|---|---|
| Program Memory Size (KB) | 0.375 |
| CPU Speed (MIPS/DMIPS) | 2 |
| Data EEPROM (bytes) | 0 |
| Capture/Compare/PWM (CCP) | 0 |
| Max 8 Bit Digital Timers | 1 |
| Number of ADCs | 1 |
| ADC Channels | 2 |
| Max ADC Resolution (bits) | 8 |
| Number of Comparators | 0 |
| Temp. Range Min. | -40 |
| Temp. Range Max. | 125 |
| Operation Voltage Max.(V) | 5.5 |
| Operation Voltage Min.(V) | 2 |
| Pin Count | 6 |
| Low Power | No |
| Pins | Packaging | 8 | DFN |
| Temp Range | -40C to +85C |
| Packing Media | Tape and reel (3300) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| PIC10F220/222 Data Sheet |
Application Notes |
|---|
| AN1687 - Emulating High-Endurance Data EEPROM for PIC10 and PIC12 |
| AN1687 Source Code - Emulating High-Endurance Data EEPROM for PIC10 and PIC12 |
Board Design Files |
|---|
| PIC10F2XX Universal Programmer Adapter Pin 1 Guide |
| PIC10F2XX Hobby Kit Pin 1 Guide |
Legacy Collaterals |
|---|
| AN1229 - Class B Safety Software Library for PIC MCUs and dsPIC DSCs |
Miscellaneous |
|---|
| QE |
Programming Specifications |
|---|
| PIC10F220/222 Memory Programming |
Supporting Collateral |
|---|
| Understanding Reset Events on the PIC10F20X |
| Detecting Multiple Voltages Using the PIC10F204/206 Comparator |
| PIC Microcontroller Compiled Tips 'n Tricks Guide |
| Quality Engineer |
User Guides |
|---|
| Programming PIC10F2XX Devices with BFMP |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.0156 |
| Shipping Weight (kg) | 0.130606 |
| Lead Count | 8 |
| Package Type | DFN |
| Package Width or Size | 2x3x0.9mm |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| 384B Flash, 16B Ram, 4 I/O, 8Bit Adc 8 Dfn 2X3X0.9Mm T/R Rohs Compliant: Yes |Microchip Technology PIC10F220T-I/MC | Newark Electronics |
| MCU 8-bit PIC10 PIC RISC 384byte Flash 2.5V/3.3V/5V 8-Pin DFN EP T/R | Avnet America |
| IC: PIC microcontroller | TME |
| 6 Pin, 384 B Std Flash, 16 RAM | Microchip Technology |
| 8-PIN, 384B FLASH, 16B RAM, 4 I/O, 8-BIT ADC | RS Americas |
| MCU, 8BIT, PIC10, 4MHZ, DFN-8 | element14 |
