SY10EP51VKG SY10EP51 by Microchip Technology
3.3V/5V Data and Differential Clock D Flip Flop with Reset
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
The SY10EP51V is a D flip-flop with reset and differential clock. The device is pin and functionally equivalent to the EL51 device.The reset input is an asynchronous, level triggered signal. Data enters the master portion of the flip-flop when CLK is LOW and is transferred to the slave, and thus the outputs, upon a positive transition of the CLK. The differential clock inputs of the EP51V allow the device to be used as a negative edge triggered flip-flop.The differential input employs clamp circuitry to maintain stability under open input conditions. When left open, the CLK input will be pulled down to VEE and the /CLK input will be biased a VCC/2.
Where to Buy
Prices starting from US$2.73
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$2.73
|
9,800
in stock
|
Buy Now |
|
Newark Electronics
from US$2.95
|
0
in stock
|
Buy Now |
|
Future Electronics
from US$2.77
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.77
|
0
in stock
|
Buy Now |
|
Farnell
from US$2.73
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| 3.3V and 5V power supply options |
| 320ps typical propagation delay |
| Maximum frequency >3GHz typical |
| 75Ω internal input pulldown resistors |
| Transistor count: 143 |

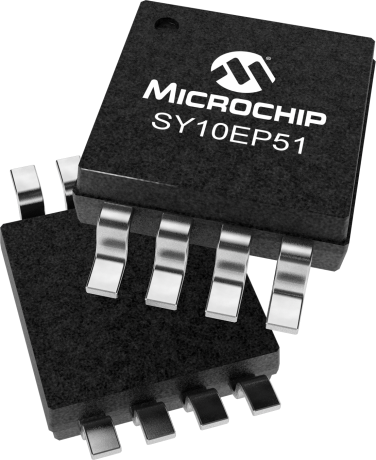

| Available in 8-Pin (3mm x 3mm) MSOP, SOIC and MLF®(2mm x 2mm) packages |
Specifications
| Sub Group | Registers and Flip-Flop |
|---|---|
| Product Type | Registers and Flip Flops |
| Supply Voltage | 3.3V/5 |
| Output Type | ECL |
| Temperature Range | -40C to +85C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 3.3V/5V Data And Differential Clock D Flip Flop With Reset 8 Msop 3X3Mm Tube Rohs Compliant: Yes |Microchip Technology SY10EP51VKG | Newark Electronics |
| Flip Flop, D, 370 ps, 3 GHz, 50 mA, 8 Pins, MSOP | Avnet America |
| LOGIC, FLIP FLOP, D, 320PS, MSOP-8 | Farnell |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a SY10EP51VKG?
Additional datasheets, footprints and schematics for SY10EP51VKG are listed on our Part Details page. You can also find images and similar parts to SY10EP51VKG on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for SY10EP51VKG on our Product Comparison page. Access via the 'View Pricing & Stock' button to view SY10EP51VKG price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does SY10EP51VKG fall under?
The SY10EP51VKG is listed under SY10EP51.
Can I view similar or alternative parts?
You can view similar parts to SY10EP51VKG when available in the SY10EP51 range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the SY10EP51VKG you can contact the distributor directly for product support, shipping queries etc.
Is the SY10EP51VKG RoHS compliant?
This part has not been flagged as RoHS Compliant.
Which authorised distributors for SY10EP51VKG have stock available?
Authorised distributors including Microchip Technology, Newark Electronics, Future Electronics, Avnet America and Farnell have stock available or on a lead time for SY10EP51VKG.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for SY10EP51VKG often in real-time on the comparison pages.
What if I can't find stock of SY10EP51VKG?
You can fill out our help required form which you can use to request a quote for SY10EP51VKG from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
