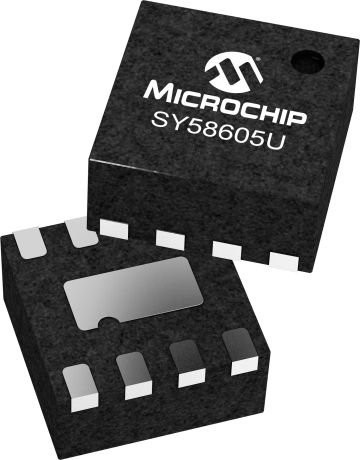

SY58605UMG-TR More Semiconductors - ICs by Microchip Technology
| Status: | Active |
|---|---|
| Series: | SY58605U |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$4.43
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$4.43
|
11,008
in stock
|
Buy Now |
|
Avnet America
from US$4.94
|
1,000
in stock
|
Buy Now |
|
Newark Electronics
from US$5.24
|
597
in stock
|
Buy Now |
|
element14
from US$6.47
|
597
in stock
|
Buy Now |
|
Farnell
from US$4.54
|
597
in stock
|
Buy Now |
|
Future Electronics
from US$4.65
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Precision 325mV LVDS buffer |
| DC-to >3.2Gbps throughput |
| <300ps typical propagation delay (IN-to-Q) |
| <100ps rise/fall times |
| Prevents output from oscillating when input is invalid |
| Ultra-low jitter design |
| <1psRMS cycle-to-cycle jitter |
| <10psPP total jitter |
| <1psRMS random jitter |
| <10psPP deterministic jitter |
| High-speed LVDS output |
| 2.5V ±5% power supply operation |
| Industrial temperature range: -40°C to +85°C |
| Available in 8-pin (2mm x 2mm) DFN package |
Specifications
| Product Type | Buffer |
|---|---|
| Description | Line Driver/Receiver |
| Input | ANY |
| Output | LVDS |
| Supply Voltage | 2.5V |
| Max Freq (GHz) | 3.2 |
| Max Data (Gbps) | 2 |
| Max Prop Delay (ps) | 420 |
| Icc (mA) | 50 |
| Power Supply | 0 |
| OE | False |
| RPE | False |
| FSI | True |
| Input Mux | False |
| Input EQ | False |
| Delay Resolution ps/step | 0 |
| Channels | Single |
| Output Type | LVDS |
| Number Of Outputs | 0 |
| Pins | Packaging | 8 | VDFN |
| Temp Range | -40C to +85C |
| Packing Media | Tape and reel (1000) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| SY58605U Data Sheet |
User Guides |
|---|
| SY58603U/604U/605U Evaluation Board User's Guide |
Environmental Information
| JEDEC Indicator | e4 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.0109 |
| Shipping Weight (kg) | 0.339227 |
| Lead Count | 8 |
| Package Type | VDFN |
| Package Width or Size | 2x2x0.9mm |
| Soldering Composition | NiPdAu |
Alternative Descriptions
| 3.2Gbps LVDS Buffer w/ FSI Inputs | Microchip Technology |
| Clock Buffer, 3Ghz, Dfn-8 | Newark Electronics |
| CLOCK BUFFER, 3GHZ, DFN-8 | element14 |
| 3.2GBPS LVDS BUFFER W/ FSI INPUTS | Future Electronics |
