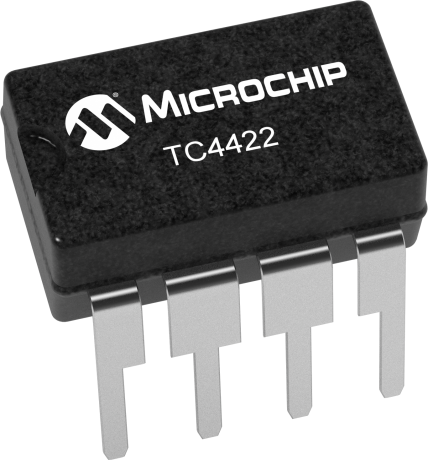

TC4422EPA More Semiconductors - ICs by Microchip Technology
9 A MOSFET Gate Driver
| Status: | Active |
|---|---|
| Series: | TC4422 |
| RoHS: | Unknown |
The TC4421/4422 are high current buffer/drivers capable of driving large MOSFETs and IGBTs. They are essentially immune to any form of upset except direct overvoltage or over-dissipation — they cannot be latched under any conditions within their power and voltage ratings; they are not subject to damage or improper operation when up to 5 V of ground bounce is present on their ground terminals; they can accept, without either damage or logic upset, more than 1 A inductive current of either polarity being forced back into their outputs. In addition, all terminals are fully protected against up to 4 kV of electrostatic discharge. The TC4421/4422 inputs may be driven directly from either TTL or CMOS (3 V to 18 V). In addition, 300 mV of hysteresis is built into the input, providing noise immunity and allowing the device to be driven from slowly rising or falling waveforms.
Where to Buy
Prices starting from US$1.89
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$2.53
|
11,504
in stock
|
Buy Now |
|
TME
from US$2.60
|
180
in stock
|
Buy Now |
|
Farnell
from US$4.11
|
179
in stock
|
Buy Now |
|
Newark Electronics
from US$3.39
|
0
in stock
|
Buy Now |
|
Future Electronics
from US$1.96
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.89
|
0
in stock
|
Buy Now |
|
RS Americas
from US$3.84
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Tough CMOSâ„¢ Construction |
| High Peak Output Current: 9 A |
| High Continuous Output Current: 2 A Max |
| 30 ns with 4,700 pF Load |
| 180 ns with 47,000 pF Load |
| Short Internal Delays: 30 ns (Typical) |
| Low Output Impedance: 1.4 Ω (Typical) |
Specifications
| MOSFET Driver Type | Low Side |
|---|---|
| Driver Type | Single |
| Configuration | Non-Inverting |
| Maximum Supply Voltage (V) | 20 |
| Peak Source Output (A) | 9 |
| Peak Sink Output (A) | 9 |
| Source Resistance (Ω) | 1.4 |
| Sink Resistance (Ω) | 0.9 |
| Propagation Delay tD1 (ns) | 50 |
| Propagation Delay tD2 (ns) | 65 |
| Rise Time (tR, ns) | 60 |
| Fall Time (tF, ns) | 60 |
| Capacitive Load Drive | 10,000 pF in 60 ns |
| Pins | Packaging | 8 | PDIP |
| Temp Range | -40C to +85C |
| Packing Media | Tube (60) |
Last 6 months Inventory & Pricing History
Resources
Board Design Files |
|---|
| SPICE Models for TC4421-22 MOSFET Driver Devices |
Brochures |
|---|
| Quick Guide to Microchip Development Tools |
| Analog & Interface Guide (Volume 2) |
| Analog and Interface Product Selector Guide |
Environmental Information
| ROHS | Unknown |
|---|---|
| China EFUP | Unknown |
Alternative Descriptions
| 9A Sngl MOSFET Drvr | Microchip Technology |
| IC: driver | TME |
| DRIVER, MOSFET SINGLE, 4422, DIP8 | Farnell |
| Mosfet Driver, Low-Side, Dip-8 | Newark Electronics |
| TC4422 Series 9 A 18 Vmax 1.4 Ohm Low Side Non Inverting MOSFET Driver - PDIP-8 | Future Electronics |
| MOSFET DRVR 9A 1-OUT Lo Side Non-Inv 8-Pin PDIP Tube | Avnet America |
| MICROCHIP TC4422EPA, MOSFET POWER DRIVER 9A,4.5 TO 18V, NON-INVERTING,8-PIN PDIP | RS Americas |
