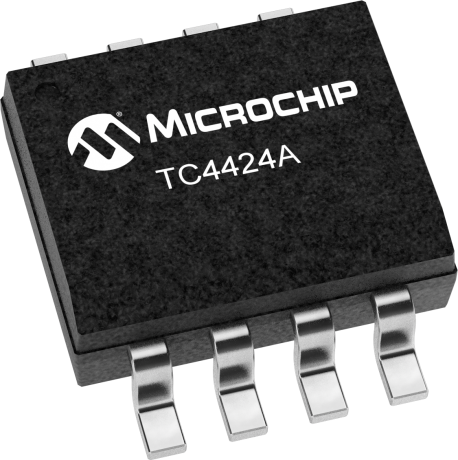

TC4424AVOA Power Management ICs - PMIC by Microchip Technology
Dual 3 A MOSFET Gate Driver
| Status: | Active |
|---|---|
| Series: | TC4424A |
| RoHS: | Compliant |
The TC4423A/4424A/4425A are a family of dual, 3 A output MOSFET gate drivers, which are high-current buffer/drivers capable of driving large MOSFET transistors and Insulated Gate Bipolar Transistors (IGBTs).The TC4423A/4424A/4425A have matched leading and falling-edge propagation delay times and have very low cross-conduction currents that help minimize the overall power dissipation of these devices. This family is an improved version of the earlier TC4423/4424/4425 driver family. The new family features higher peak output current drive capability, matched rise/fall times and propagation delay times. An 8-pin SOIC package option has been added to the family, and the 8-pin DFN package option offers increased power dissipation capability for driving heavier capacitive or resistive loads.
Where to Buy
Prices starting from US$0.85
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$1.37
|
14,660
in stock
|
Buy Now |
|
Newark Electronics
from US$1.47
|
949
in stock
|
Buy Now |
|
element14
from US$1.58
|
949
in stock
|
Buy Now |
|
Farnell
from US$1.83
|
949
in stock
|
Buy Now |
|
RS
from US$2.20
|
151
in stock
|
Buy Now |
|
TME
from US$1.78
|
151
in stock
|
Buy Now |
|
Future Electronics
from US$1.44
|
0
in stock
|
Buy Now |
|
Ozdisan
from US$0.85
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Wide Operating Range: 4.5 V to 18 V |
| High Capacitive Load Drive Capability: 1,800 pF in 13 ns |
| Short Delay Times: < 41 ns (Typical) |
| Matched Rise/Fall Times |
| With Logic ''1'' Input: 1.0 mA |
| With Logic ''0'' Input: 150 µA |
| Low Output Impedance: 2.2/2.8 Ω (Typical) |
| Latch-up Protected: Will Withstand 1.5 A Reverse Current |
| Logic Input will Withstand Negative Swings Up to 5 V |
| Pinouts Same as TC4423/24/25 and TC4426/27/28 |
Specifications
| MOSFET Driver Type | Low Side |
|---|---|
| Driver Type | Dual |
| Configuration | Non-Inverting |
| Maximum Supply Voltage (V) | 18 |
| Peak Source Output (A) | 3 |
| Peak Sink Output (A) | 3 |
| Source Resistance (Ω) | 2.2 |
| Sink Resistance (Ω) | 2.8 |
| Propagation Delay tD1 (ns) | 40 |
| Propagation Delay tD2 (ns) | 41 |
| Rise Time (tR, ns) | 12 |
| Fall Time (tF, ns) | 12 |
| Capacitive Load Drive | 1,800 pF in 12 ns |
| Pins | Packaging | 8 | SOIC |
| Temp Range | -40C to +125C |
| Packing Media | Tube (100) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| TC4423A/TC4424A/TC4425A Data Sheet |
Board Design Files |
|---|
| SPICE Models for TC4423A-24A-25A MOSFET Driver Devices |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.078 |
| Shipping Weight (kg) | 0.25 |
| Lead Count | 8 |
| Package Type | SOIC |
| Package Width or Size | .150In(3.90mm) |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| 3AMP DUAL MOSFET DRIVERS | Microchip Technology |
| Mosfet Driver, Dual, Low Side, Soic-8 | Newark Electronics |
| IC, DRIVER, MOSFET, DUAL 3A, SOIC8 | element14 |
| MOSFET dual non-inverting driver, 3A | RS |
| IC: driver | TME |
| TC4424 Series 4.5 A 18 Vmax 2.5 Ohm Dual Non-Inverting MOSFET Driver - SOIC-8 | Future Electronics |
| MOSFET DRVR 4.5A 2-OUT Lo Side Non-Inv 8-Pin SOIC N Tube | EBV Elektronik |
