Reinforced Isolated 3-40 Watt DC/DC Converters

Learn More

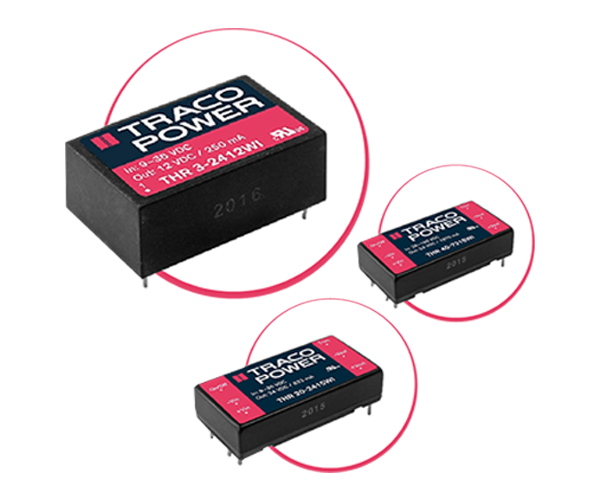

The THR line comprises four series of DC/DC converters between 3 and 40 Watt with reinforced isolation (3000 VAC). These regulated DC/DC converters come in either a DIP-24 or 2”x1” package and also feature increased resistance against shock and vibration according to EN 61373.

Key Features & Benefits:

  • Reinforced I/O-isolation 3000 VAC
  • Shock and vibration resistance according to EN 61373
  • Wide 4:1 input voltage range: 9-36, 18-75, 40-160 VDC
  • Internal EN 55032 class A filter (THR 3WI, THR 10WI, THR 20WI)
  • Operating temperature range -40 to +80°C
  • High efficiency up to 90%
  • Protection against overload, overvoltage and short circuit
