Lighting & LED Development Kits

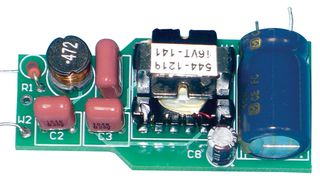

EVALUATION BOARD, HVLED805 FLYBACK LED DRIVER; Device Topology:Flyback; No. of Outputs:1Outputs; Output Current:350mA; Output Voltage:12V; Input Voltage Min:185VAC; Input Voltage Max:265VAC; Core Chip:HVLED805; Product Range:- RoHS Compliant: No

EVALUATION BOARD, DHC LINEAR LED DRIVER; Device Topology:Linear; No. of Outputs:4Outputs; Output Current:200mA; Output Voltage:26V; Input Voltage Min:90V; Input Voltage Max:132V; Core Chip:LM3464; Dimming Control Type:Analogue, PWM RoHS Compliant: Yes

L6562A, LED DRIVER, HB RGB LED, 35W, DEMO BOARD; Device Topology:Flyback; No. of Outputs:-; Output Current:350mA; Output Voltage:-; Input Voltage Min:88VAC; Input Voltage Max:265VAC; Core Chip:L6562A; Dimming Control Type:- RoHS Compliant: Yes

EVALUATION BOARD, MCP1664 LED DRIVER; Device Topology:Boost (Step Up); No. of Outputs:1Outputs; Output Current:270mA; Output Voltage:32V; Input Voltage Min:2.4V; Input Voltage Max:5.5V; Core Chip:MCP1664; Dimming Control Type:PWM RoHS Compliant: NA

EVALUATION BOARD, HV9805 OFF-LINE LED DRIVER; Device Topology:Boost, SEPIC; No. of Outputs:1Outputs; Output Current:90mA; Output Voltage:265V; Input Voltage Min:102VAC; Input Voltage Max:138VAC; Core Chip:-; Dimming Control Type:- RoHS Compliant: NA

EVALUATION BOARD, HV9805 OFF-LINE LED DRIVER; Device Topology:Boost, SEPIC; No. of Outputs:1Outputs; Output Current:100mA; Output Voltage:125VDC; Input Voltage Min:195.5VAC; Input Voltage Max:264.5VAC; Core Chip:-; Product Range:- RoHS Compliant: NA

EVALUATION BOARD, HVLED815PF LED DRIVER; Device Topology:Flyback; No. of Outputs:1Outputs; Output Current:485mA; Output Voltage:30.5V; Input Voltage Min:176V; Input Voltage Max:264V; Core Chip:HVLED815PF; Dimming Control Type:PWM RoHS Compliant: Yes

DEV BOARD, KEA128 LIGHTING CONTROLLER; Device Topology:-; No. of Outputs:4Outputs; Output Current:-; Output Voltage:-; Input Voltage Min:-; Input Voltage Max:12V; Core Chip:KEA128, MC33901, MC33662; Dimming Control Type:Analogue; KitRoHS Compliant: Yes

EVAL KIT, HB LED BOOST-BUCK CONTROLLER ROHS COMPLIANT: YES

STRATA ENABLED MULTI-SOLUTION LED BOARD ROHS COMPLIANT: YES

EVAL BOARD, LED6001 PWM LED DRIVER; Device Topology:Boost, Constant Current, SEPIC; No. of Outputs:1Outputs; Output Current:350mA; Output Voltage:-; Input Voltage Min:6V; Input Voltage Max:24V; Core Chip:LED6001; Dimming Control RoHS Compliant: Yes

DEMO BOARD, SEPIC LED DRIVER; Device Topology:Boost, Buck, SEPIC; No. of Outputs:1Outputs; Output Current:200mA; Output Voltage:-; Input Voltage Min:-; Input Voltage Max:-; Core Chip:MCP1633; Dimming Control Type:PWM; Product Range:-

DEMO BOARD, HVLED815PF LED DRIVER; Device Topology:Constant Current, Flyback; No. of Outputs:1Outputs; Output Current:-; Output Voltage:-; Input Voltage Min:90VAC; Input Voltage Max:132VAC; Core Chip:HVLED815PF; Product Range:- RoHS Compliant: Yes

AUTODEVKIT, LED DRIVER ROHS COMPLIANT: YES

EVAL BOARD, SYNCHRONOUS BUCK LED DRIVER; Device Topology:Synchronous Buck (Step Down); No. of Outputs:1Outputs; Output Current:1.5A; Output Voltage:-; Input Voltage Min:4V; Input Voltage Max:36V; Core Chip:MPQ4425A; Product Range:- RoHS Compliant: Yes

EVALUATION BOARD, LED DRIVER; Device Topology:Boost (Step Up); No. of Outputs:1Outputs; Output Current:-; Output Voltage:-; Input Voltage Min:8V; Input Voltage Max:60V; Core Chip:HV96001; Dimming Control Type:Analogue, PWM

EVALUATION BOARD, LM3406HV LED DRIVER; Device Topology:Buck, Constant Current; No. of Outputs:1Outputs; Output Current:1.5A; Output Voltage:73V; Input Voltage Min:6V; Input Voltage Max:75V; Core Chip:LM3406HV; Product Range:- RoHS Compliant: Yes

EVAL BOARD, MCP1643 SYNC BOOST LED REG; Device Topology:Boost (Step Up); No. of Outputs:1Outputs; Output Current:100mA; Output Voltage:-; Input Voltage Min:500mV; Input Voltage Max:2.5V; Core Chip:MCP1643; Dimming Control RoHS Compliant: Yes

DEMO BOARD, LCC LED DRIVER ROHS COMPLIANT: YES

DEMONSTRATION BOARD, LED PFET CONTROLLER; Device Topology:Buck (Step Down); No. of Outputs:1Outputs; Output Current:1A; Output Voltage:15V; Input Voltage Min:6V; Input Voltage Max:42V; Core Chip:LM3409; Dimming Control Type:PWM; Kit RoHS Compliant: NA
